1005 SERIES-STRAIGHT RUNNING-FLAT TOP-DYNAMIC TRANSFER SYSTEM (DTS)

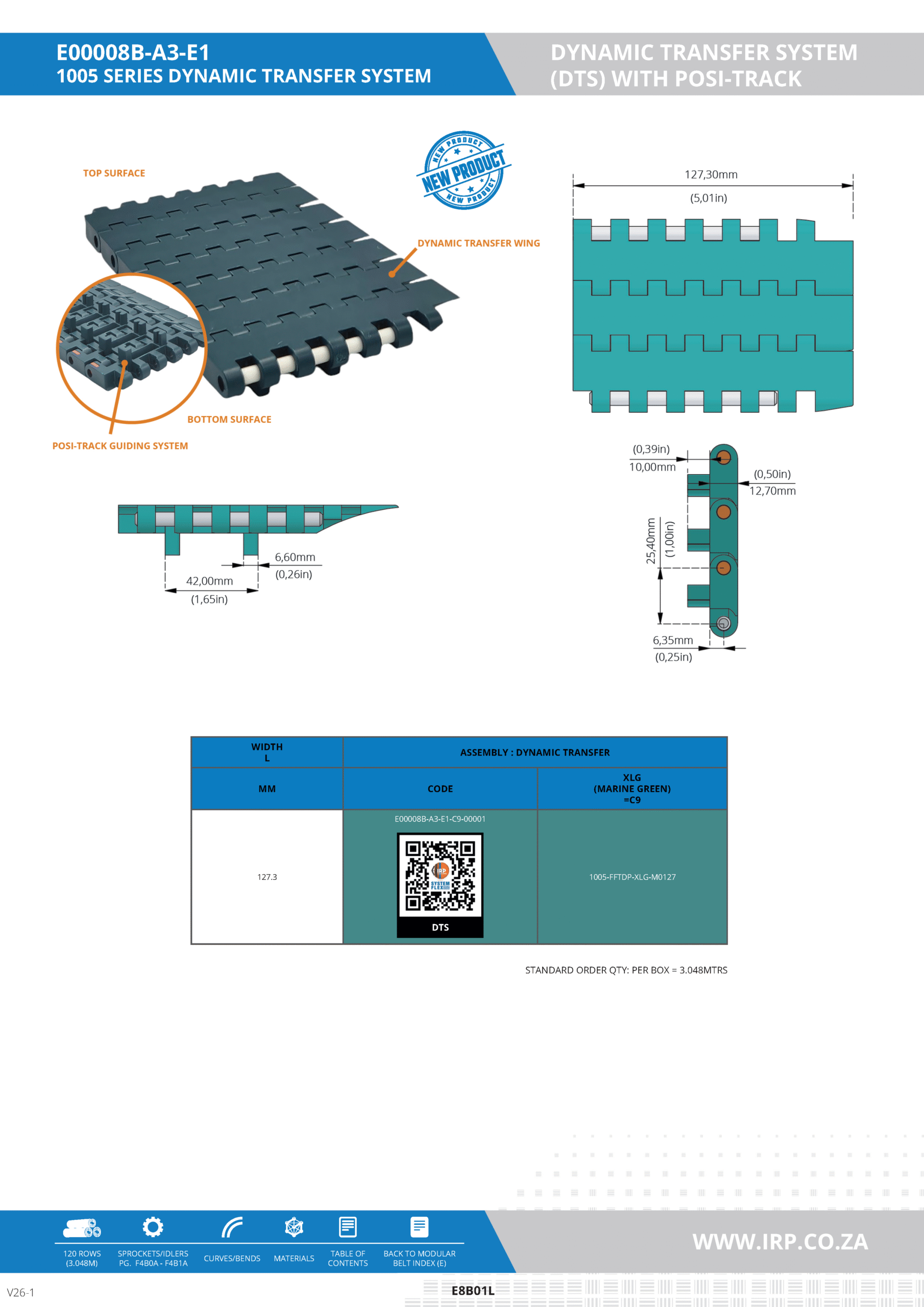

Catalogue code: E00008B-A - 1005 Series Flat Top DYNAMIC TRANSFER SYSTEM
1005 Series
Straight Running
Flat Top – DYNAMIC TRANSFER SYSTEM (DTS)
Part of the 1005 Series is a flat top modular conveyor belt with Dynamic Transfer System engineered for high-performance and smooth transfer between conveyors in material handling applications. Assembled to a specific width requirement, this belt offers a 12.7 mm top plate and a robust build quality with Acetal Flat Top modules and PBT pin components. Ideal for smooth product transfer, it ensures stability and reliability under both dry and wet operating conditions.
Colour/s
XLG (Marlin Green)
Material/s
XLG (Marlin Green) Acetal with PBT Pins
Standard Order Quantity
Standard Order Quantity: Per meter – Assembled to Width (ATW) (Widths available from 85 mm to 1275 mm)
A premium-grade acetal polymer, XLG provides excellent mechanical strength and wear resistance. Reinforced with PBT pins for added durability, this material combination allows long-term performance in demanding conditions.
Smooth Flat Top: Ensures consistent, stable transport of products
High Load Capacity: Supports loads up to 2200 N/m at 21°C
Low Backflex Radius: 25 mm backflex for compact conveyor routing
Wet & Dry Use: Performs reliably in varied environmental conditions
Precision Fit: Available in a wide range of standard widths
Maintenance Friendly: Easy to install, clean, and replace
Solution Features & Benefits
Easy integration into most conveyor setups
Suitable for sensitive or small product handling
Low friction and high strength design
Industries & Ideal Applications
Food & Beverage: Smooth transfer for packaged or unpackaged goods
Logistics & Distribution: Consistent transport across systems
Low Backflex Radius: 25 mm backflex for compact conveyor routing
Wet & Dry Use: Performs reliably in varied environmental conditions
Manufacturing: General-purpose belt for parts and goods movement
Coming soon...
