1505 Series Straight Running – Flat Top-IMPERIAL

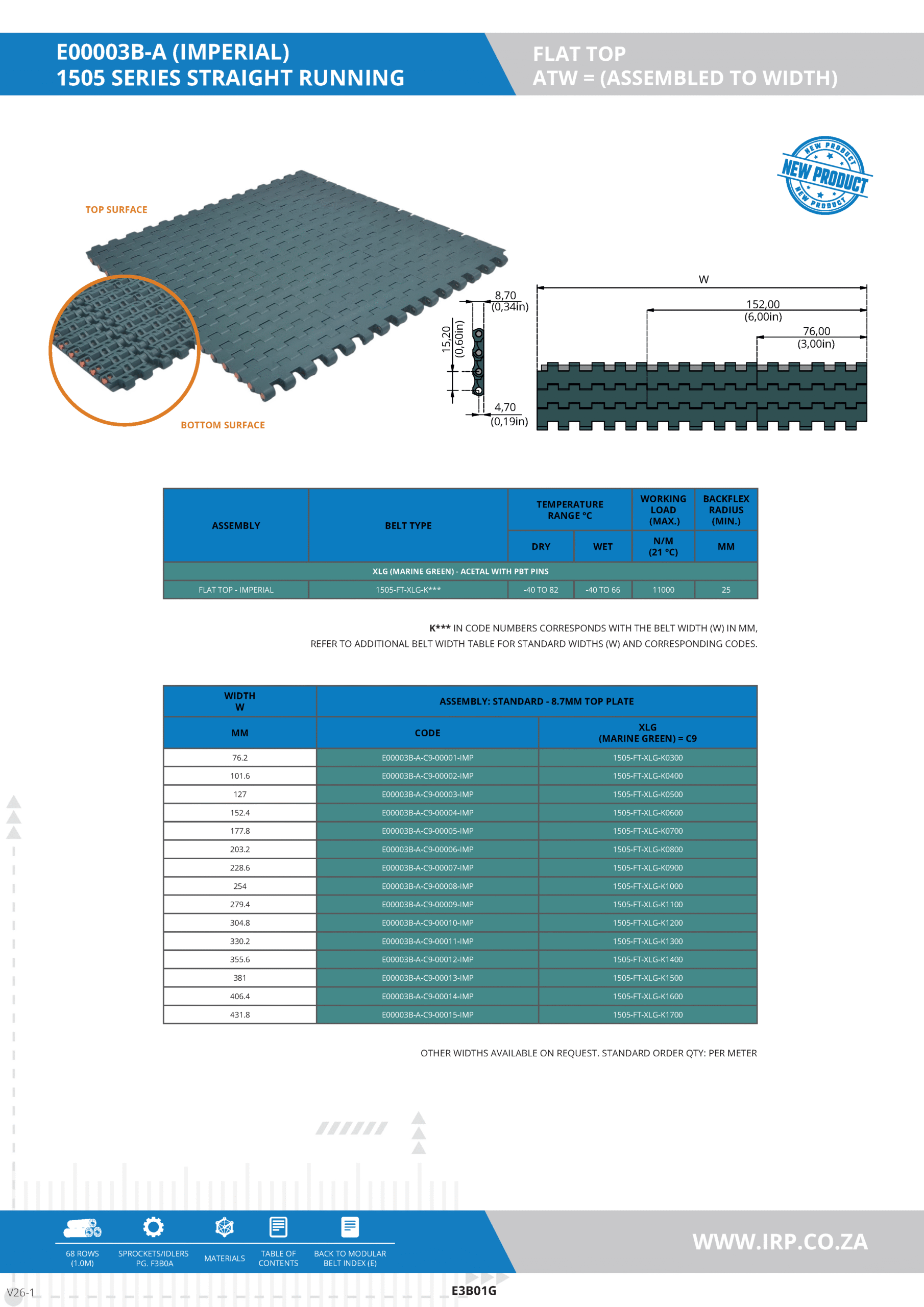

Catalogue code: E00003B-A (IMPERIAL)

1505 Series
Straight Running
Flat Top ASSEMBLED TO WIDTH (ATW) - (IMPERIAL)
The 1505 Series Imperial Flat Top modular belt is designed for high-strength applications requiring a flat, continuous surface. It features an 8.7 mm thick top plate and is assembled with acetal-based material and PBT pins for enhanced wear resistance and durability. Its flat top provides maximum product support, making it ideal for conveying packaged goods or containers.

Colour/s

Marine Green

Material/s

Acetal

Standard Order Quantity

Standard Order Quantity:
request a catalogue
Product information:

Key Features & Benefits

High-strength, low-friction acetal for superior wear performance. Resistant to a wide range of chemicals, suitable for high-speed lines.
  • Flat Top Design Smooth surface ideal for transporting stable items like trays, cartons, or totes.
  • High Load Capacity Handles working loads up to 1000 N/m.
  • Standard Imperial Widths Available in standard imperial widths from 3" to 17".
  • Assembled to Width (ATW) Delivered ready-to-install with no additional assembly.
  • Easy Maintenance Modular design allows for quick section replacement and minimal downtime.

Solution Features & Benefits

  • No assembly required – supplied ATW
  • Withstands high mechanical loads
  • Operates in both cold and heated environments

Industries & Ideal Applications

  • Manufacturing: Designed for transporting components and goods in a stable, flat orientation.
  • Packaging: Excellent for box/carton handling on automated lines.
  • Standard Imperial Widths Available in standard imperial widths from 3" to 17".
  • Assembled to Width (ATW) Delivered ready-to-install with no additional assembly.
  • Pharmaceuticals: Clean, modular, and easy-to-replace for hygienic operations.
