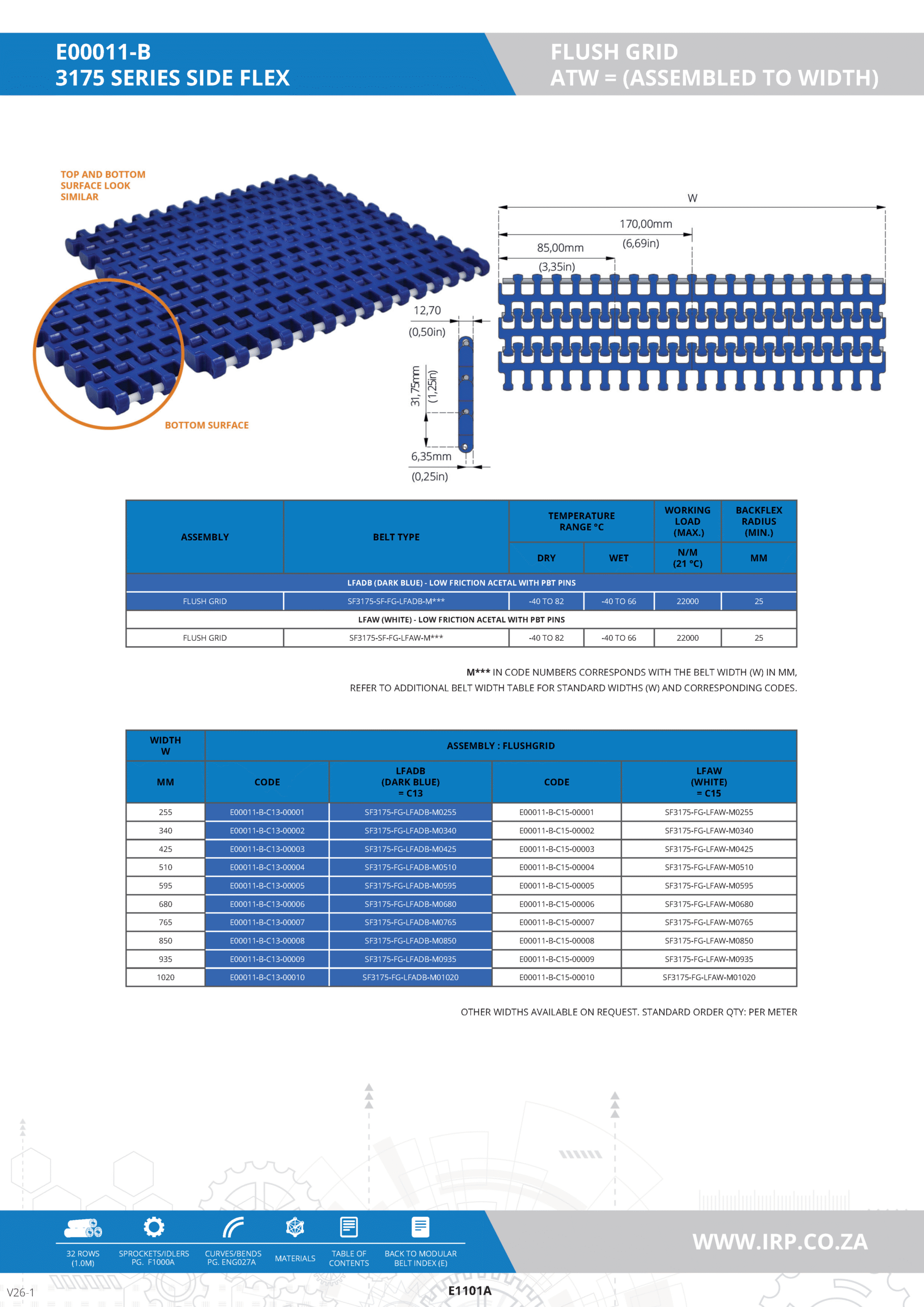

3175 Series-SIDE FLEXING-Flush Grid – ASSEMBLED TO WIDTH (ATW)

Catalogue code: E00011-B

3175 Series
Side Flexing
Flush Grid - ASSEMBLED TO WIDTH (ATW)
This 3175 Side Flexing Series is a high-load, side-flexing conveyor belt designed with a flush grid surface to improve airflow and product hygiene. Made from low friction acetal (LFA), it is engineered for tight turns (25 mm backflex radius) and high-speed systems requiring smooth side-flex performance. The Offset Eye design ensures pin retention without the need for additional pin retaining clips. The belt is available in dark blue (LFADB) and white (LFAW), both with durable PBT pins for additional wear resistance. Ideal for high-performance curved conveyor applications across various industries.

Colour/s

Available in Dark Blue (LFADB) and White (LFAW)

Material/s

Low Friction Acetal (LFADB – Dark Blue, LFAW – White) with PBT Pins

Standard Order Quantity

Standard Order Quantity: Assembled to Width (ATW) – Custom widths per table or request (Standard widths range from 255 mm to 1030 mm)
request a catalogue
Product information:

Key Features & Benefits

Low Friction Acetal is known for its excellent dimensional stability, high wear resistance, and low coefficient of friction. Combined with PBT pins, this material is suited for dry and wet environments where precision, hygiene, and minimal resistance are critical.
  • Low Friction Acetal Surface: Ideal for fast-moving, low-resistance transport
  • Flush Grid Design: Promotes airflow and liquid drainage for hygienic processes
  • Tight Radius Capability: Minimum backflex radius of 25 mm

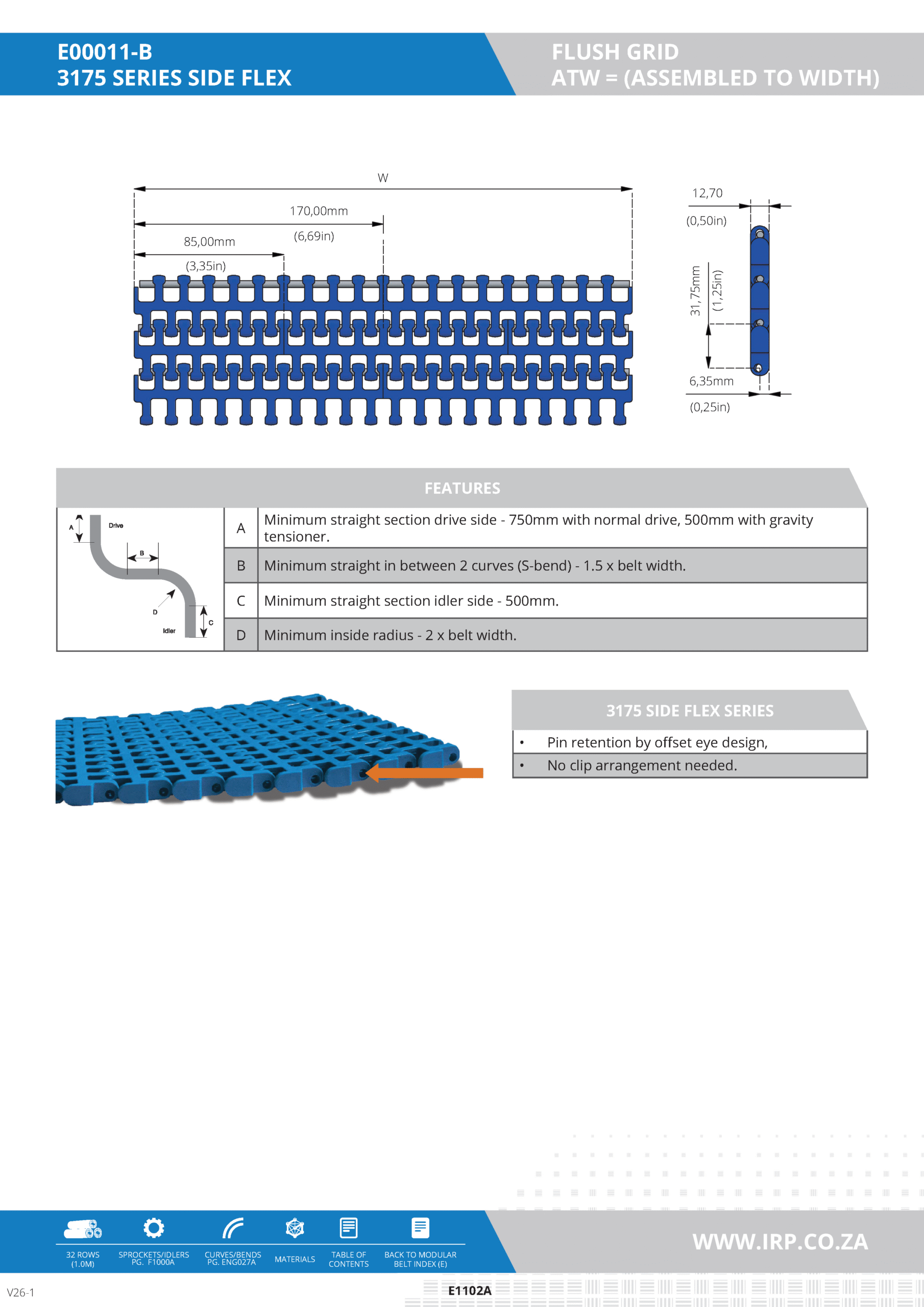

  • Offset Eye Pin Retention: No clips needed, easy to assemble and maintain
  • High Load Rating: Supports up to 22000 N/m for heavy-duty operations
  • Multiple Widths Available: Range from 255 mm to 1030 mm

Solution Features & Benefits

  • Reduces friction for energy-efficient movement
  • Minimizes product drag and resistance on curves
  • Allows tight radius turns without belt damage

Industries & Ideal Applications

  • Automotive Assembly Lines: Transport of components through curved layouts
  • Packaged Food Handling: Supports tight layout packaging lines with drainage needs
  • Tight Radius Capability: Minimum backflex radius of 25 mm
  • Offset Eye Pin Retention: No clips needed, easy to assemble and maintain
  • Consumer Goods Manufacturing: Smooth transfer of boxes and containers
Coming soon...
