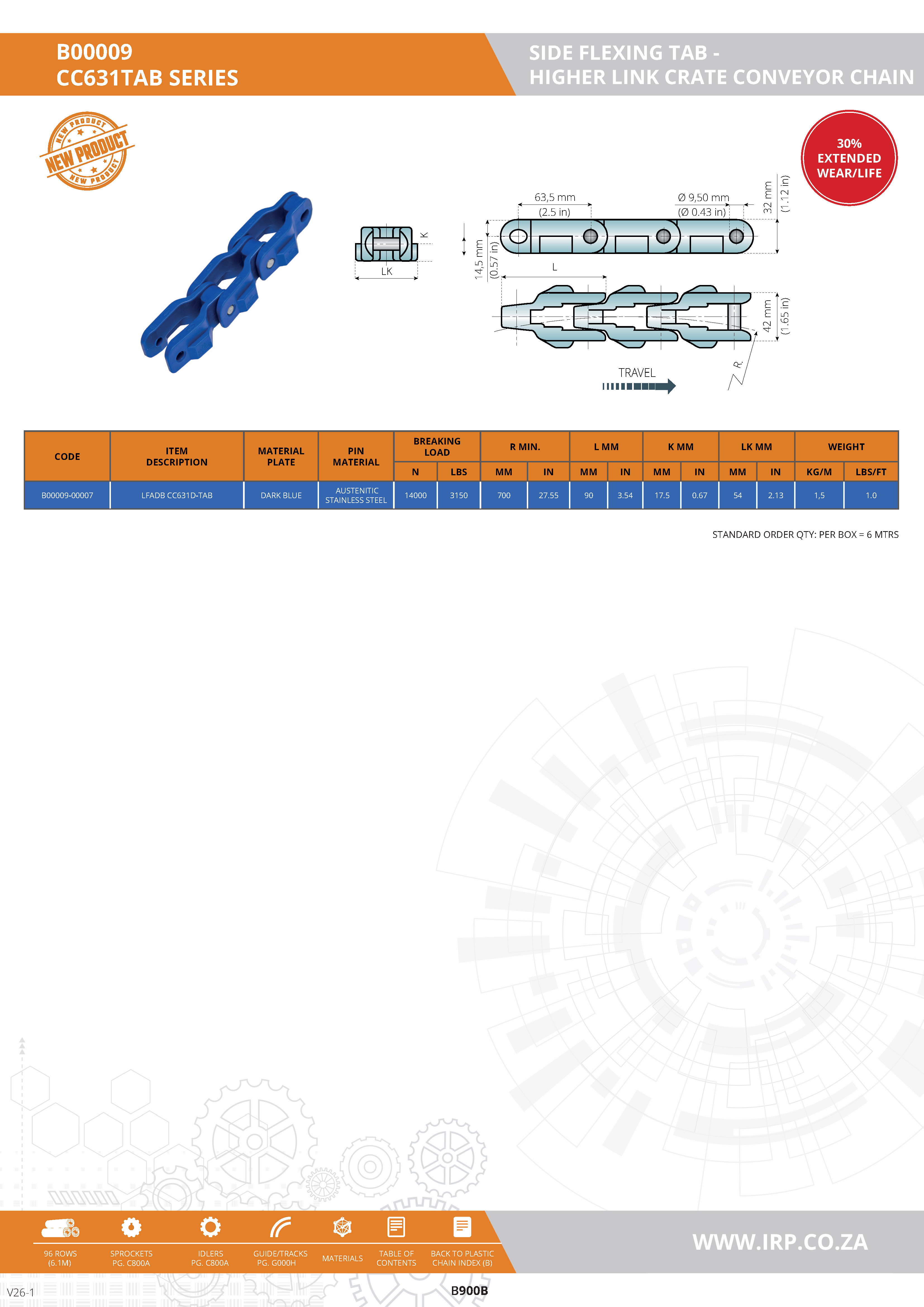

The CC631TAB side-flexing crate conveyor chain is designed for high-performance conveying in demanding crate-handling environments. With reinforced higher-link construction and TAB-style guidance, this chain provides excellent side-flex capability, smooth travel, and reduced wear over long operating cycles. The chain features precision-moulded LFADB dark blue polymer plates combined with austenitic stainless-steel pins, delivering low friction, high durability, and a 30% extended wear life as shown on the product image. Dimensional highlights from the technical sheet include: • Chain pitch: 63.5 mm (2.5 in) • Pin diameter: 9.50 mm • Overall height: 14.75 mm • Minimum radius (R): 316.0 mm • Weight: 1.5 kg/m • Breaking load: 14,000 N This chain is ideal for side-flexing crate systems requiring dependable tracking, smooth cornering, and long-term mechanical stability.
