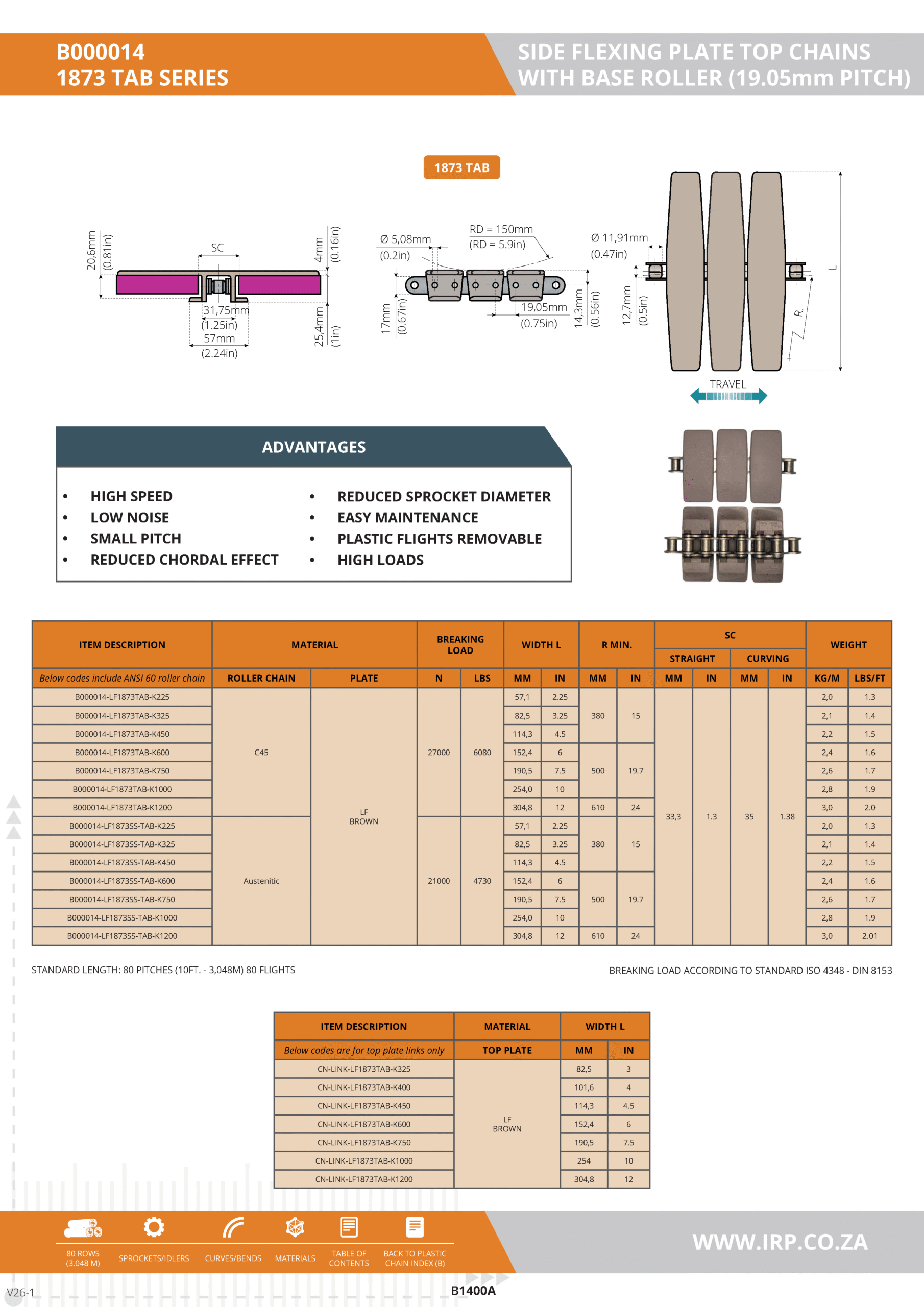

B00014 – 1873 TAB Series Side Flexing Plate Top Chains

Product Type: B0000 Plastic Slatband Chain

B00014 – 1873 TAB Series Side Flexing Plate Top Chains

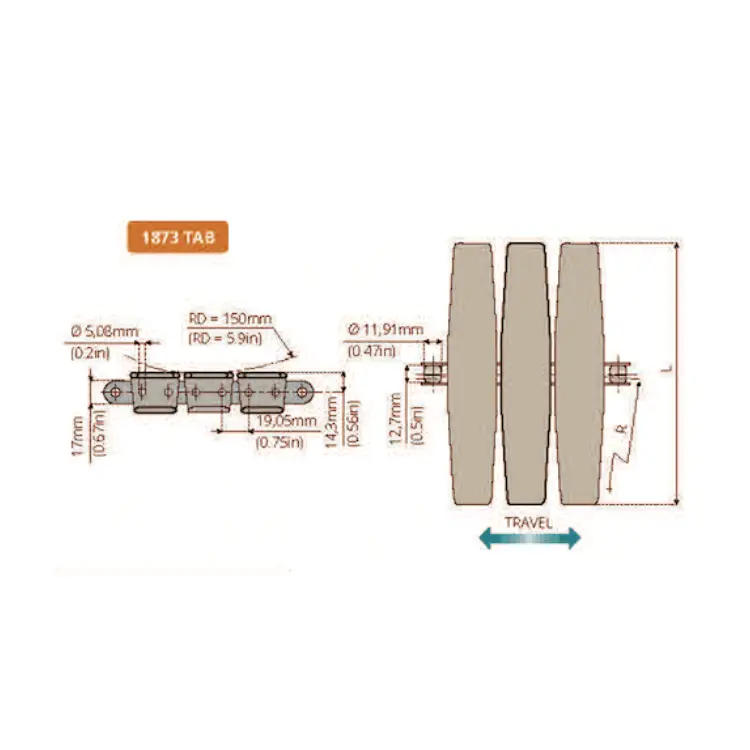

The B00014 – 1873 TAB Series is engineered for side-flexing conveyor applications, with a 19.05mm pitch and base rollers designed for reduced noise and improved performance. The side-flexing design allows the chains to handle curves with ease, while the small pitch ensures a smooth operation with minimal chordal effect. Available in materials such as C45, LF Brown, and Austenitic, these chains are optimized for high load-bearing capacities and long service life in demanding industrial environments. They are easy to maintain, with removable plastic flights for quick cleaning and adjustments.

Material/s

Available in C45, LF Brown, and Austenitic.

Solution/s

Colour/s

Varies by material type

Product information:

Key Features & Benefits

C45: High-strength carbon steel material for heavy-duty applications. LF Brown: Low-friction material, ideal for applications requiring reduced wear and maintenance. Austenitic: Corrosion-resistant material, suitable for environments with exposure to moisture or chemicals.

High-speed performance with low noise levels.
Small pitch design reduces the chordal effect for smoother operation.
Base rollers allow for reduced sprocket diameter and easier maintenance.
High load capacity for demanding industrial applications.
Plastic flights are removable, simplifying cleaning and adjustments.
Available in various materials to suit different industrial environments.

Solution Features & Benefits

Breaking Load: 21000 N (4730 lbs) to 27000 N (6080 lbs) depending on the material type. Width (L): 57.1 mm to 304.8 mm Minimum Radius (R): 150 mm to 610 mm Weight: 2.0 kg/m to 2.8 kg/m

Standard Order Quantity: Standard Length: 80 pitches (10 ft / 3.048 meters / 80 flights)

Industries & Ideal Applications

Food & Beverage: Ideal for conveyor systems in food processing environments requiring precise handling and smooth operation.
Pharmaceuticals: Suitable for pharmaceutical applications with strict hygiene requirements and high load capacities.
Base rollers allow for reduced sprocket diameter and easier maintenance.
High load capacity for demanding industrial applications.
Automotive: Suitable for transporting heavy automotive components in manufacturing lines with curved paths.
