E00003-A-D 1500 Straight Running Series Flat Top with Flights/Cleats (D) ATW (Assembled to Width)

E00003-A-D 1500 STRAIGHT RUNNING SERIES-FLAT TOP WITH FLIGHTS_CLEATS (D)-ATW = (ASSEMBLED TO WIDTH)

E00003-A-D 1500 STRAIGHT RUNNING SERIES-FLAT TOP WITH FLIGHTS_CLEATS (D)-ATW = (ASSEMBLED TO WIDTH) (4)

E00003-A-D 1500 STRAIGHT RUNNING SERIES-FLAT TOP WITH FLIGHTS_CLEATS (D)-ATW = (ASSEMBLED TO WIDTH) (3)

Product Type: E0000 Modular Belts

E00003-A-D 1500 Straight Running Series Flat Top with Flights/Cleats (D) ATW (Assembled to Width)

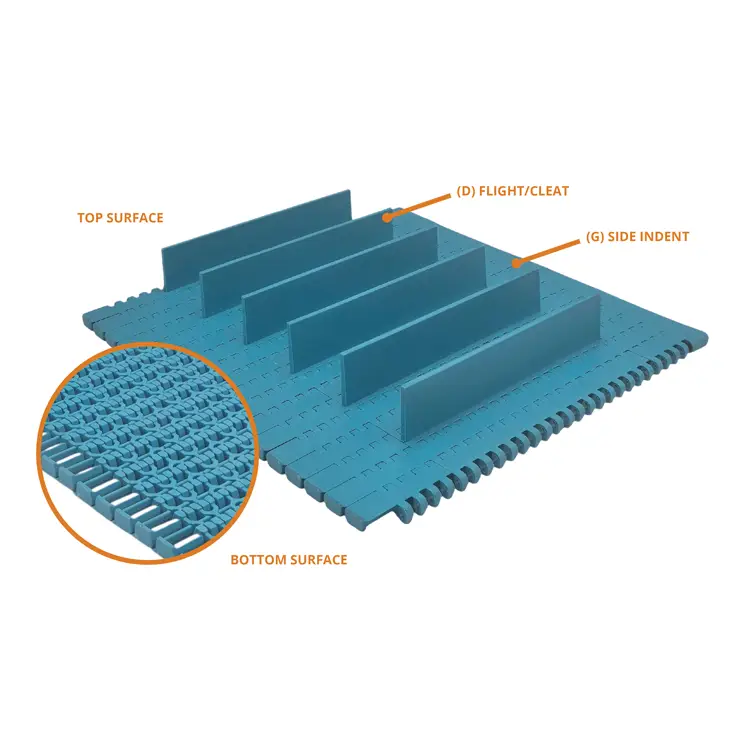

This series features belts designed for straight running applications but enhanced with the addition of flights or cleats, providing improved material handling capabilities. These belts are suitable for vertically conveying items in industries like packaging, food processing, and material handling, ensuring items remain secure and are efficiently elevated to different levels within the production process.

Material/s

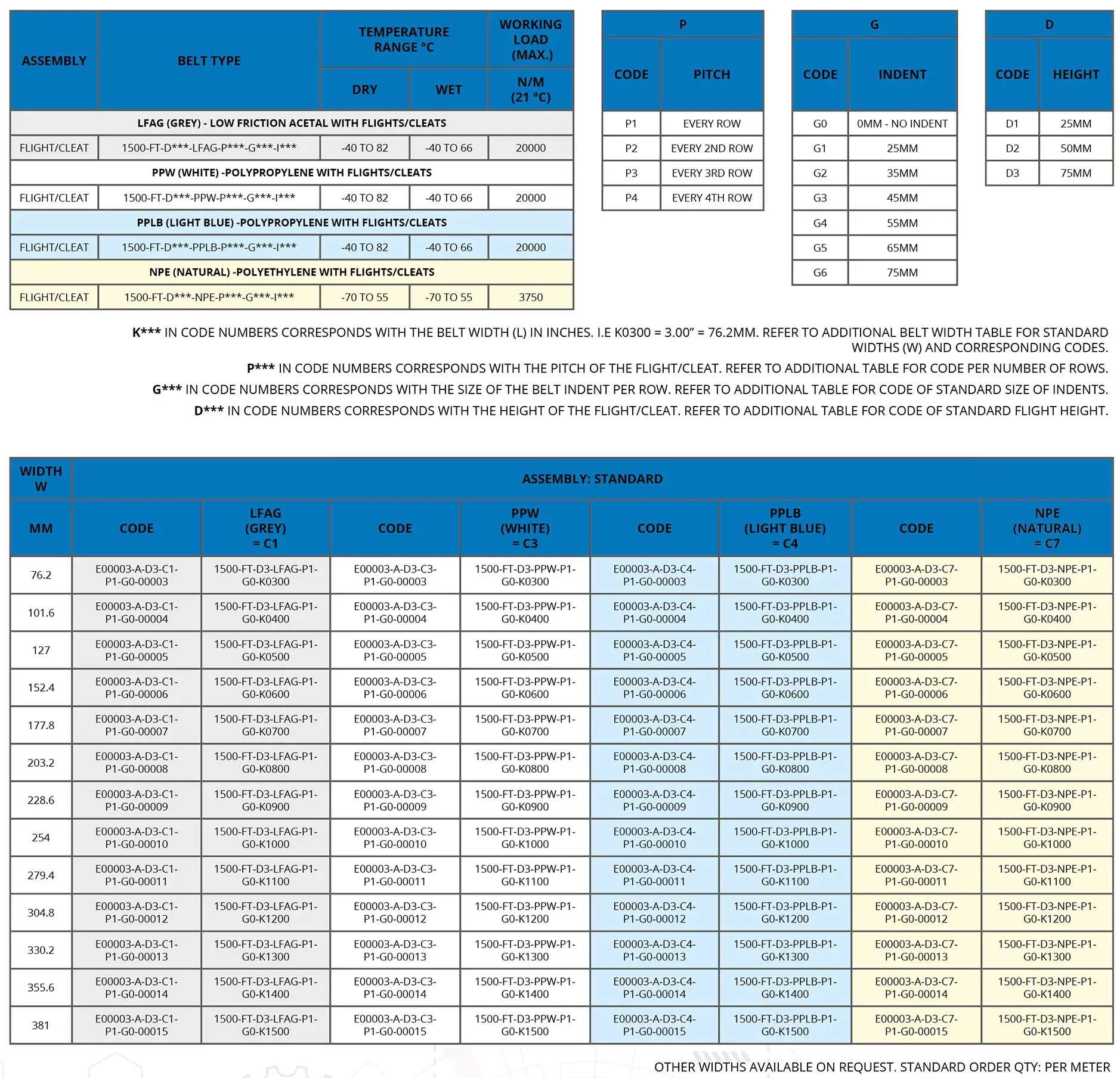

Options include LFAG (Low Friction Acetal with PBT Pins), PPW (Polypropylene with PBT Pins), PPLB (Light Blue Polypropylene with PBT Pins), NPE (Natural Polyethylene with PBT Pins).

Solution/s

Small Transfer, Flights/Cleats, Flat Top, Chemical-Resistant – PPB-PPW, Cold/Freezing Temperatures – NPE

Colour/s

Available in LFAG (Grey), PPW (White), PPLB (Light Blue), NPE (Natural)

Product information:

Key Features & Benefits

Each material option is selected for its specific properties such as low friction, resistance to chemicals, or suitability for food contact, making them versatile for a variety of industrial applications.

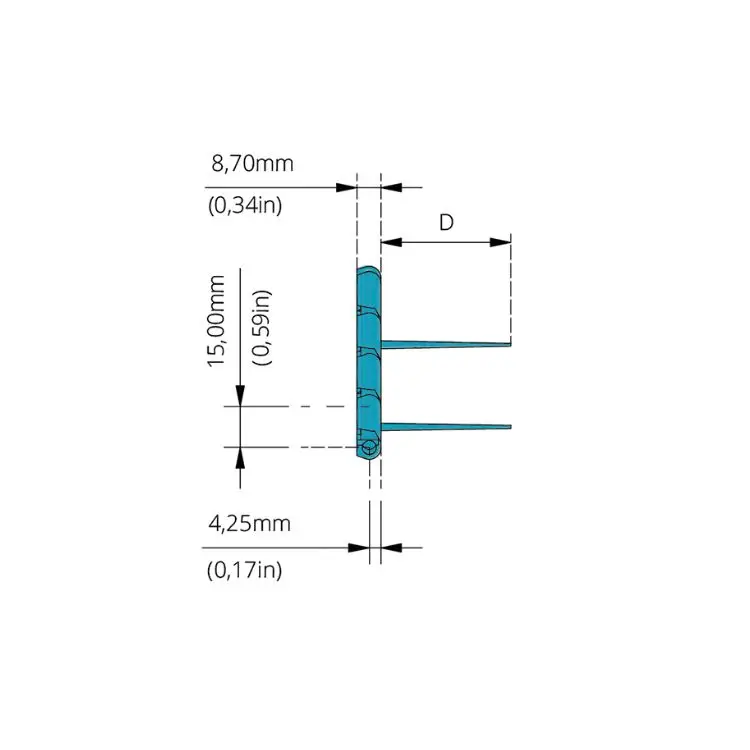

Integrated Flights/Cleats: Customizable in terms of height and spacing to suit specific conveying needs.
Durable Material Options: Ensures longevity and reliability under various operational stresses.
Wide Temperature Range: Suitable for operations in both high and low temperature environments.
Customizable Widths and Properties: Available in different widths and properties tailored to specific industrial needs.
Low Maintenance: Designed for easy cleaning and low upkeep.

Solution Features & Benefits

Flat Top Applications: Offers a smooth, stable surface for the transportation of various products, minimizing damage during transit.
Flights/Cleats Applications: Enhances the conveyance of bulk materials on inclines by preventing backsliding and improving feed rates.
Chemical-Resistant Applications: Offers resilience against corrosive substances, ensuring durability and reliability in harsh chemical environments.

Standard Order Quantity: Per meter

Industries & Ideal Applications

Food Processing: Effective in applications where products need to be elevated or separated during processing.
Packaging: Ideal for securely transporting packed goods to different levels within distribution centers.
Wide Temperature Range: Suitable for operations in both high and low temperature environments.
Customizable Widths and Properties: Available in different widths and properties tailored to specific industrial needs.
And many more
