E00007-A – 1000 Series Straight Running Flat Top (ATW)

1000 Series Straight Running – Flat Top ATW (Assembled to Width)
Straight Running Flat Top (ATW)

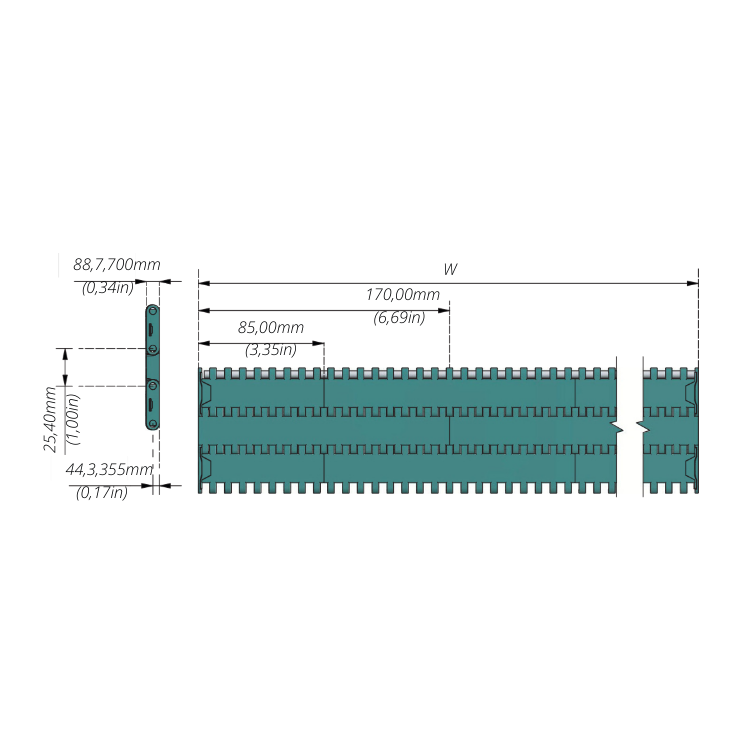

The 1000 Series Straight Running Flat Top ATW belt is engineered for reliable, efficient conveying across a wide range of industries. Featuring a smooth flat conveying surface and robust interlocking structure, it is ideal for transporting packaged goods, containers, and bulk items. Its ATW (Assembled to Width) design means the belt is delivered pre-assembled to the exact width required, improving installation times and ensuring structural stability across the entire belt width. Key dimensional data from the technical sheet: Belt thickness: 8.70mm (0.34″) Backflex radius minimum: 25mm Standard widths: 85mm to 1275mm, with other widths available on request Pitch: 25.40mm (1.00″)

Colour/s

Marine Green, Grey Blue, White

Material/s

XLG (Marine Green), NGE Dry (Grey Blue), PPW (White)

Standard Order Quantity

Standard Order Quantity: Per Meter
request a catalogue
Product information:

Key Features & Benefits

These high-performance polymers have been selected for strength, wear resistance, and reliability across varied temperature conditions. XLG Acetal: Best for high-load applications. NGE Dry: Best for high-temperature operation. PPW Polypropylene: Best for chemical resistance and washdown environments.
  • Flat top surface ensures smooth, stable product handling.
  • ATW (Assembled-to-Width) delivery reduces installation time and improves system accuracy.
  • High mechanical strength with PBT hinge pins across all variants.
  • Available in a very wide range of widths (85–1275mm).
  • Works effectively in both dry and wet applications.
  • High working load capacities suitable for demanding conveyor lines.

Solution Features & Benefits

  • High tensile strength for heavy-duty conveying.
  • Resistant to cracking, fatigue, and long-term wear.
  • Maintains performance across varied temperatures.

Industries & Ideal Applications

  • Food Processing: Flat, stable platform for packaged and unpackaged food items.
  • Beverage Manufacturing: Smooth conveying for bottles, cans, crates, and trays.
  • High mechanical strength with PBT hinge pins across all variants.
  • Available in a very wide range of widths (85–1275mm).
  • General Manufacturing: High load capability for robust production-line conveying.
