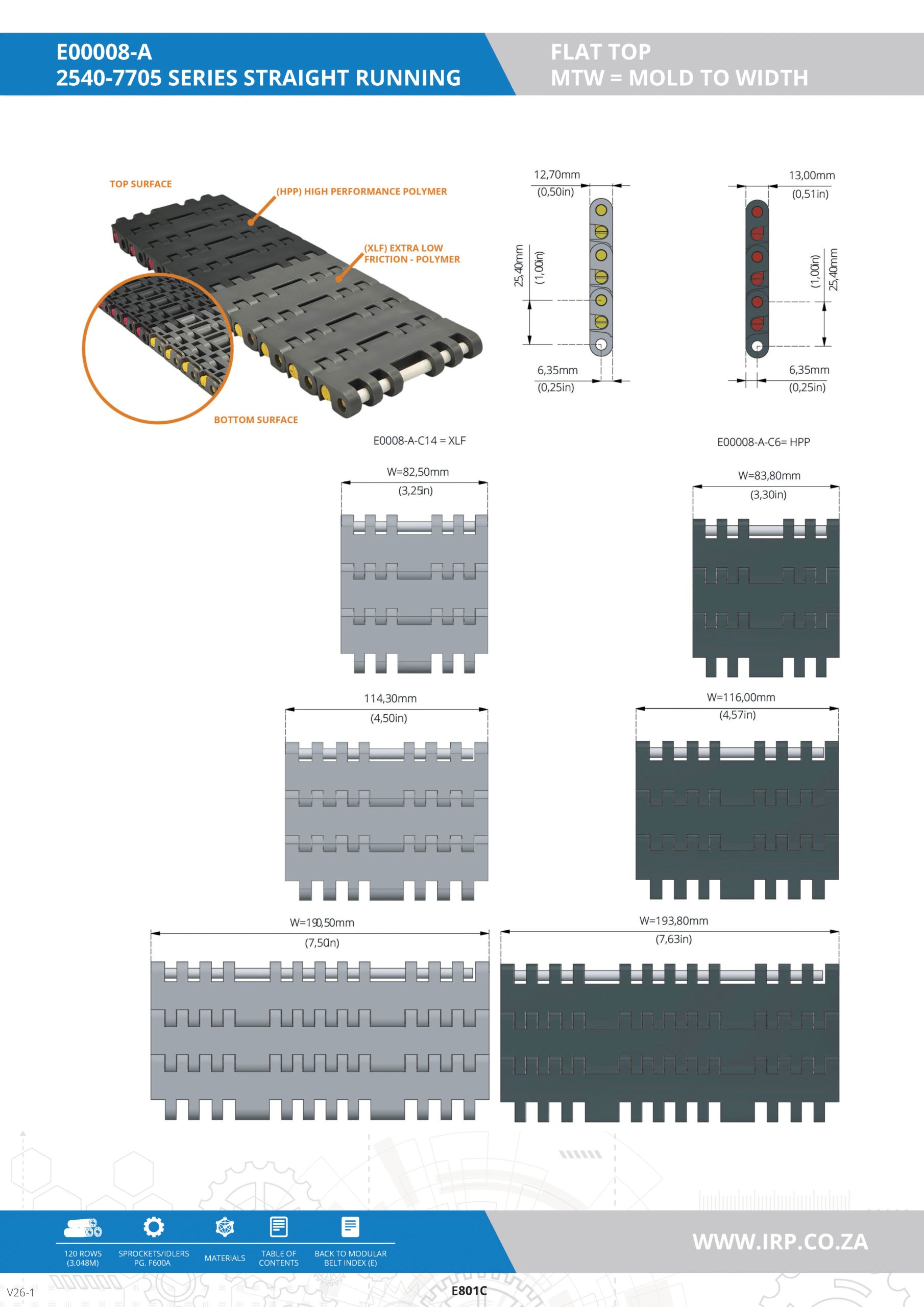

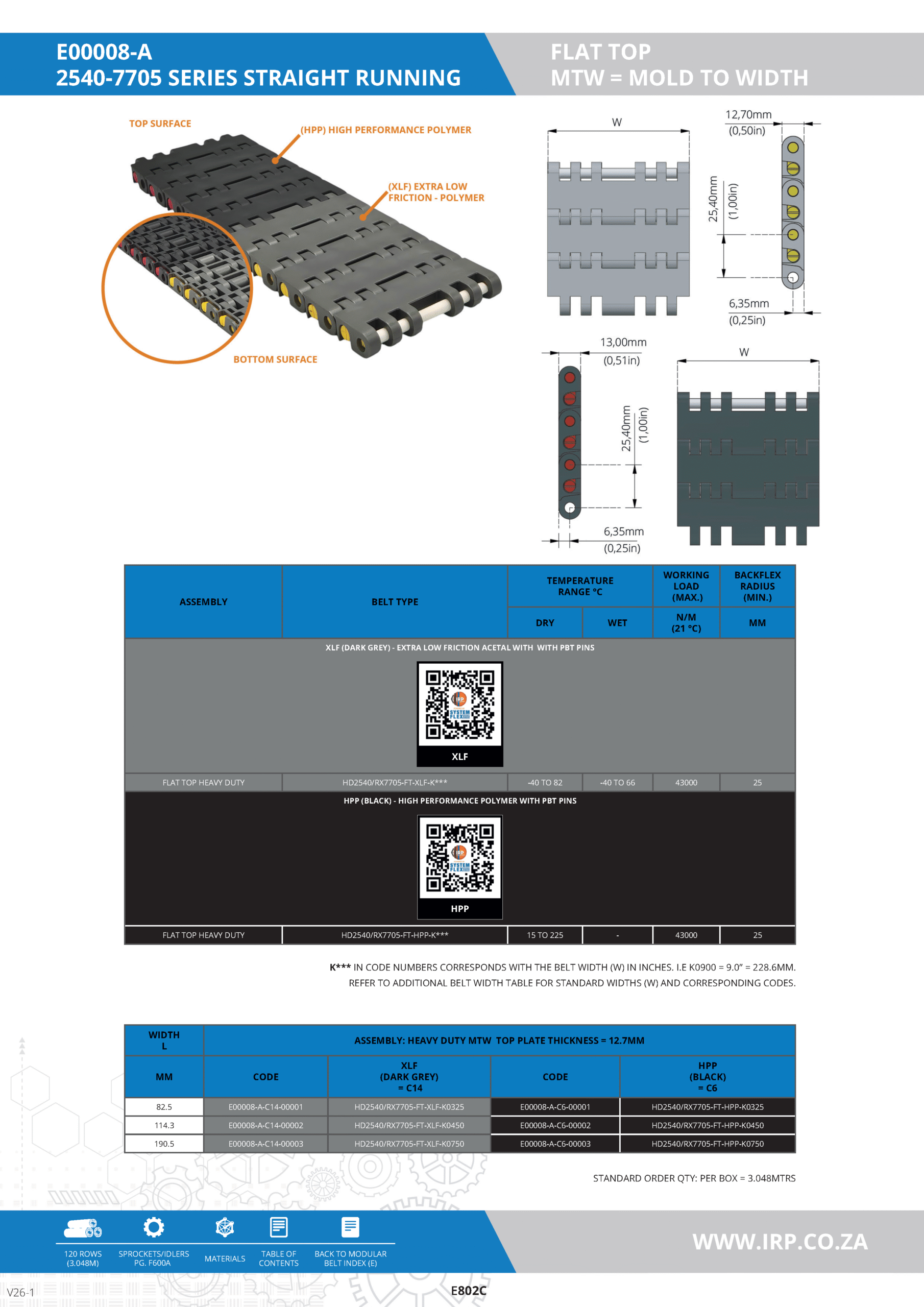

2540-7705 SERIES STRAIGHT RUNNING FLAT TOP (FT) MOLD TO WIDTH (MTW)
Catalogue code: E00008-A
2540-7705
Straight Running
Flat Top (FT) Mold-To-Width (MTW)
The 2540-7705 Series MTW Flat top belt is a heavy-duty solution designed for robust industrial environments. Molded to width for optimal performance and durability, this belt features a 12.7 mm top plate and is available in two advanced polymer options—XLF for low friction and HPP for high temperature endurance. Suitable for high-load applications in both wet and dry conditions.
Colour/s
XLF (Dark Grey) HPP (Black)
Material/s
XLF (Dark Grey): Extra Low Friction Acetal with PBT Pins HPP (Black): High Performance Polymer with PBT Pins
XLF: Designed for minimal friction in high-speed conveyor systems
HPP: Designed to withstand High Heat and High Wear, offering strength and temperature resistance in demanding environments
Heavy-Duty Capacity: 4300 N/m working load
Molded to Width (MTW): Delivers exact sizing, less installation work
High Thermal Tolerance: HPP option up to 225°C
Friction-Optimized: XLF offers smooth product movement
