1005 SERIES-STRAIGHT RUNNING-FLAT TOP-ASSEMBLED TO WIDTH (ATW) WITH POSI-TRACK (DPT)

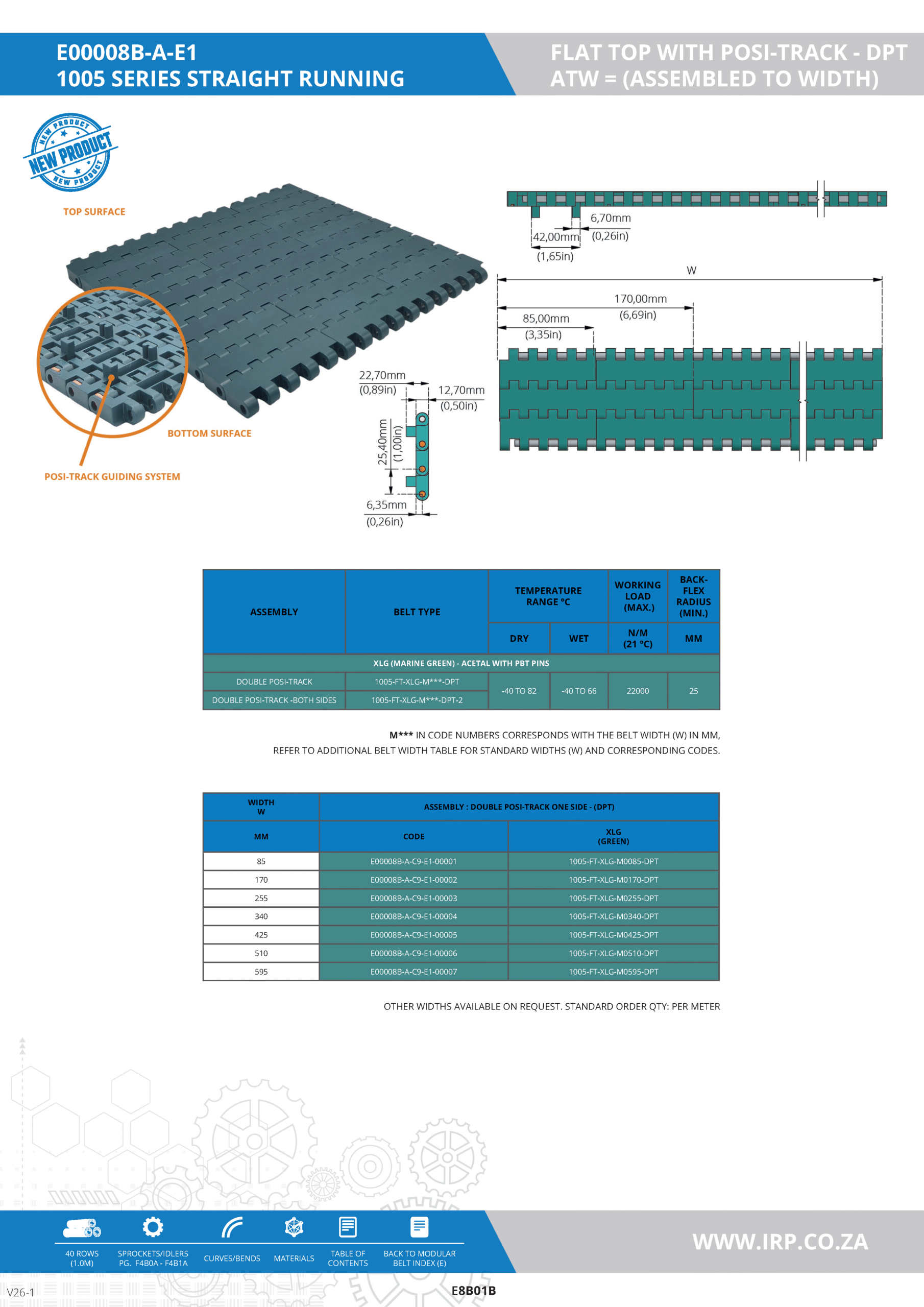

Catalogue code: E00008B-A-E1
1005 Series
Straight Running
Flat Top with Posi-Track (DPT) - ASSEMBLED TO WIDTH (ATW)
This 1005 Series features a flat top design with integrated Posi-Track guiding on one side (DPT). Built from XLG (Marlin Green) Acetal modules with reinforced PBT pins, this belt is ideal for applications requiring enhanced directional stability in one direction. Its modular construction and smooth surface support a wide variety of products, making it perfect for high-speed or high-precision environments.
Colour/s
XLG (Marlin Green)
Material/s
XLG (Marlin Green) Acetal with PBT Pins
Standard Order Quantity
Standard Order Quantity: Per meter – Assembled to Width (ATW) (Widths available from 85 mm to 595 mm)
Durable Acetal-based material designed for high load, high-performance conveying systems. Reinforced with tough PBT pins to ensure strength and resistance to wear and tear in wet or dry environments.
Single-Side Posi-Track (DPT): Helps guide the belt and reduce misalignment
Flat Top Design: Supports smooth product transfer and easy cleaning
Reinforced for Strength: Acetal modules with robust PBT pins
High Load Capacity: Withstands up to 2200 N/m at 21°C
Tight Backflex Radius: 25 mm radius for space-constrained systems
Custom Widths Available: Adaptable to a variety of conveyor setups
Solution Features & Benefits
Prevents lateral belt drift
Allows precision guidance in constrained layouts
Designed for heavy-duty and high-volume operations
Industries & Ideal Applications
Food & Beverage: For guided movement through packaging lines
Pharma & Medical: Helps reduce belt wandering in clean environments
Reinforced for Strength: Acetal modules with robust PBT pins
High Load Capacity: Withstands up to 2200 N/m at 21°C
Electronics Assembly: Minimizes micro-movements for fragile items
