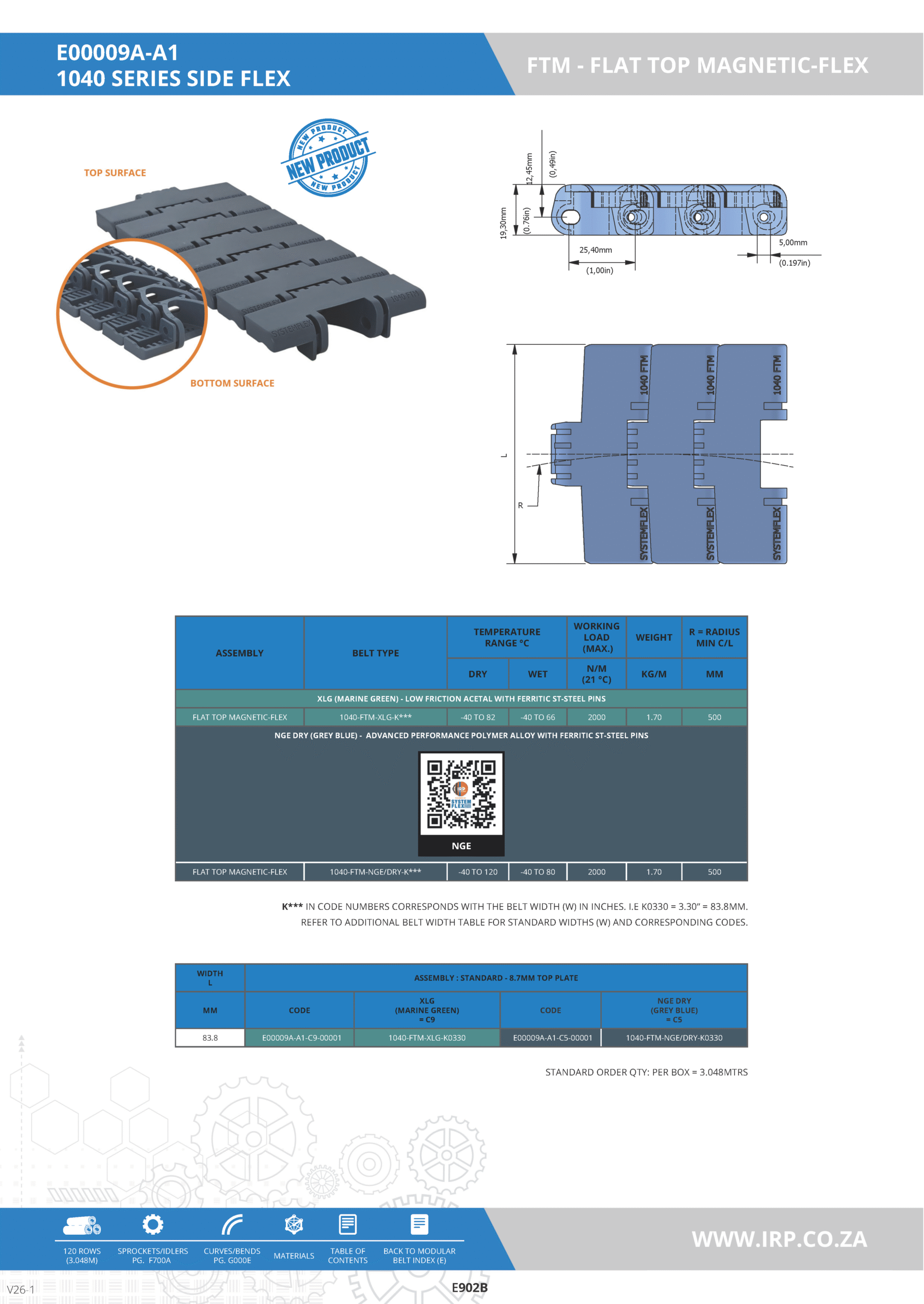

E00009A-A1 — 1040 Series Side Flex | FTM – Flat Top Magnetic-Flex

Catalogue code: E00009A-A1-C9-00001

1040 Series Side Flex – FTM Flat Top Magnetic-Flex
Modular Conveyor Belts

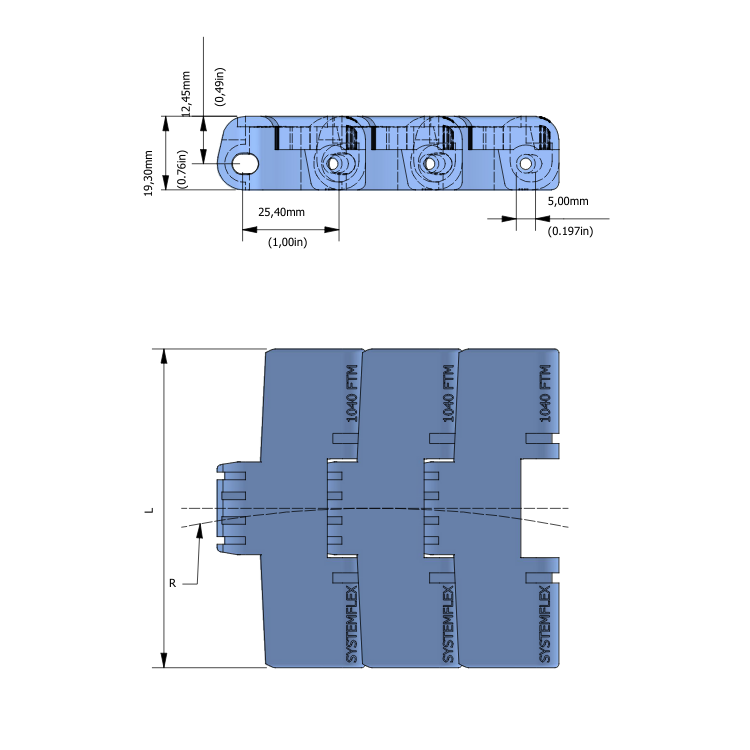

The 1040 Series FTM Flat Top Magnetic-Flex belt delivers high-performance side-flexing capability combined with magnetic retention for maximum stability on radius conveyors. Its flat top surface offers smooth and stable product handling, while the magnetic-flex hinge design ensures secure tracking when used with magnetic conveyor tracks. Engineered using either XLG Acetal (Marine Green) or NGE Dry Advanced Polymer Alloy (Grey Blue), both with ferritic stainless-steel pins, this belt provides low friction, high strength, and reliable operation in both dry and wet conditions. With a working load of 2000 N/m, a minimum radius of 500 mm, and a standard width of 83.8 mm (K33.0), this belt is purpose-built for demanding curved and serpentine conveying environments.

Colour/s

• Marine Green (XLG) • Grey Blue (NGE Dry)

Material/s

• XLG – Low-Friction Acetal with Ferritic Stainless-Steel Pins • NGE Dry – Advanced Polymer Alloy with Ferritic Stainless-Steel Pins

Standard Order Quantity

Standard Order Quantity: 3.048 metres
request a catalogue
Product information:

Key Features & Benefits

Both material options deliver superior mechanical performance and resistance to wear. • XLG Acetal provides low friction, high rigidity, and excellent running efficiency. • NGE Dry Polymer Alloy supports extended temperature ranges and enhanced durability. Ferritic stainless-steel pins ensure strong magnetic compatibility essential for magnetic-flex functionality.
  • Flat top surface for smooth product handling and stability.
  • Magnetic-flex design ensures secure engagement along magnetic tracks.
  • Side-flexing geometry supports smooth radius curves and serpentine paths.
  • Strong ferritic stainless-steel pin construction improves reliability.
  • Low-friction materials reduce wear and energy consumption.
  • High working load capacity of 2000 N/m for demanding conveyor conditions.

Solution Features & Benefits

  • Enhances tracking accuracy in radius and curved conveyors.
  • Reduces risk of belt lifting or slipping during high-speed operation.
  • Provides excellent product stability on bends and inclines.

Industries & Ideal Applications

  • Food & Beverage: Smooth transfer for packaged and unpackaged products on curved lines.
  • Packaging: High-speed turning sections for cartons, pouches, and trays.
  • Side-flexing geometry supports smooth radius curves and serpentine paths.
  • Strong ferritic stainless-steel pin construction improves reliability.
  • Material Handling: Curved conveyors requiring stable, controlled movement.
Coming soon...
