Product Type: E0000 Modular Belts

E00010-A-D-3175 Straight Running Series-Flat Top With Flights/Cleats (D)-ATW = (Assembled To Width)

The 3175 STRAIGHT RUNNING SERIES with Flights/Cleats is designed to meet the demands of conveyor systems requiring additional product handling capabilities. The belt features integrated flights/cleats available in various heights, pitches, and indents, providing customizable solutions for specific material handling needs. Made from durable materials such as low-friction Acetal (LFAG), Polypropylene (PPW and PPB), and Polyethylene (NPE), this belt ensures reliable performance in both dry and wet conditions. It is ideal for industries where controlled product movement and secure conveying are essential.

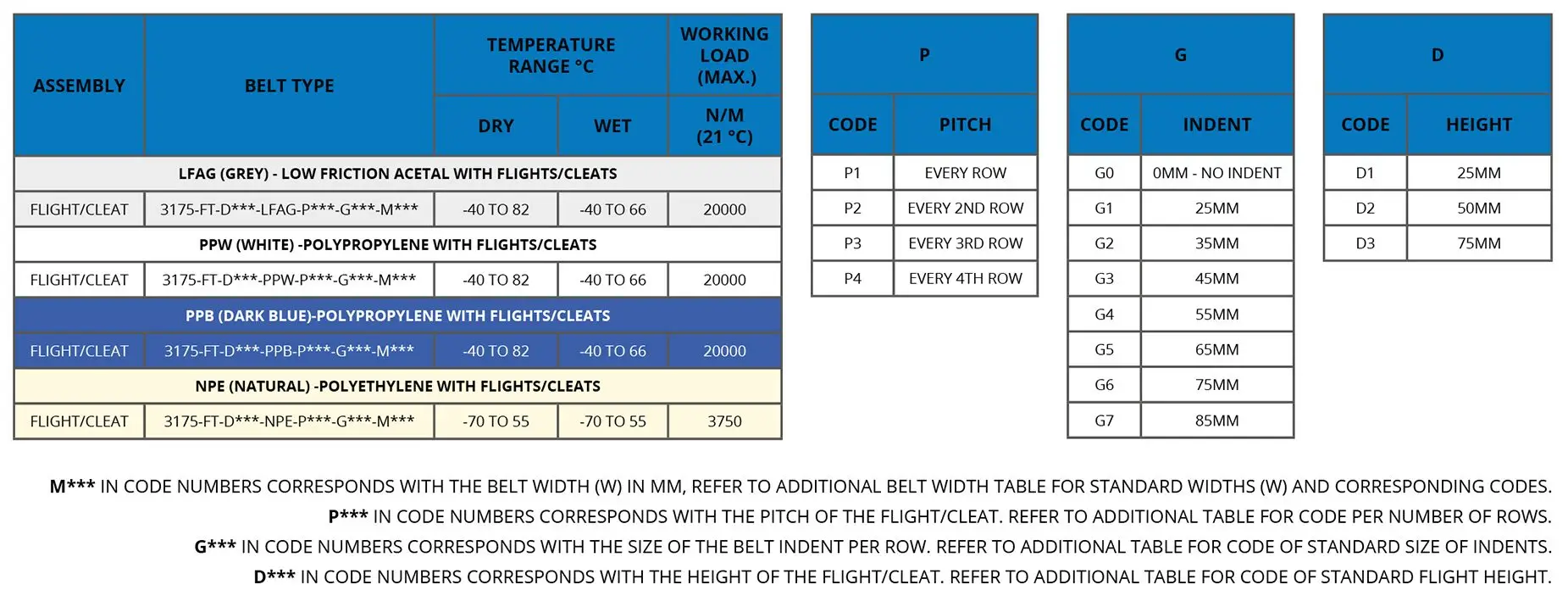

Material/s

LFAG (Grey): Low Friction Acetal with PBT pins PPW (White): Polypropylene with PBT pins PPB (Dark Blue): Polypropylene with PBT pins NPE (Natural): Polyethylene with Polyethylene pins

Solution/s

Flat Top, Metal-free Polymer – LFADB, Flights/Cleats, Chemical-Resistant – PPB-PPW, Cold/Freezing Temperatures – NPE

Colour/s

LFAG (Grey) PPW (White) PPB (Dark Blue) NPE (Natural)

Product information:

Key Features & Benefits

LFAG (Grey): Offers low friction, making it suitable for applications where minimal drag is required. PPW (White) & PPB (Dark Blue): Chemically resistant, making them ideal for environments exposed to cleaning agents or other chemicals. NPE (Natural): Provides excellent flexibility and is suitable for low-temperature environments, ensuring stability and performance.

Enhanced Material Handling: Flights/Cleats provide additional grip for transporting products on inclines or declines.
Customizable Options: Available in multiple pitches, heights, and indents to meet specific application needs.
Durable Construction: Built to withstand high loads, with a maximum working load of up to 20,000 N/m.
Wide Temperature Range: Operates efficiently in temperatures from -70°C to 82°C.
Chemical Resistance: Suitable for environments with exposure to chemicals.
Flexible Application: Ideal for both dry and wet conditions.

Solution Features & Benefits

Flat Top Applications: Offers a smooth, stable surface for the transportation of various products, minimizing damage during transit.
Metal-free Polymer Applications: Ideal for industries requiring non-metallic components to avoid contamination, corrosion, or interference with sensitive machinery and products.
Flights/Cleats Applications: Enhances the conveyance of bulk materials on inclines by preventing backsliding and improving feed rates.

Standard Order Quantity: Per meter

Industries & Ideal Applications

Food Processing: Perfect for conveying food products on inclined surfaces, ensuring stability and control.
Pharmaceutical Industry: Ideal for transporting products in sterile environments with precise control.
Durable Construction: Built to withstand high loads, with a maximum working load of up to 20,000 N/m.
Wide Temperature Range: Operates efficiently in temperatures from -70°C to 82°C.
Chemical Industry: Resistant to chemical exposure, making it suitable for chemical transport and processing.
