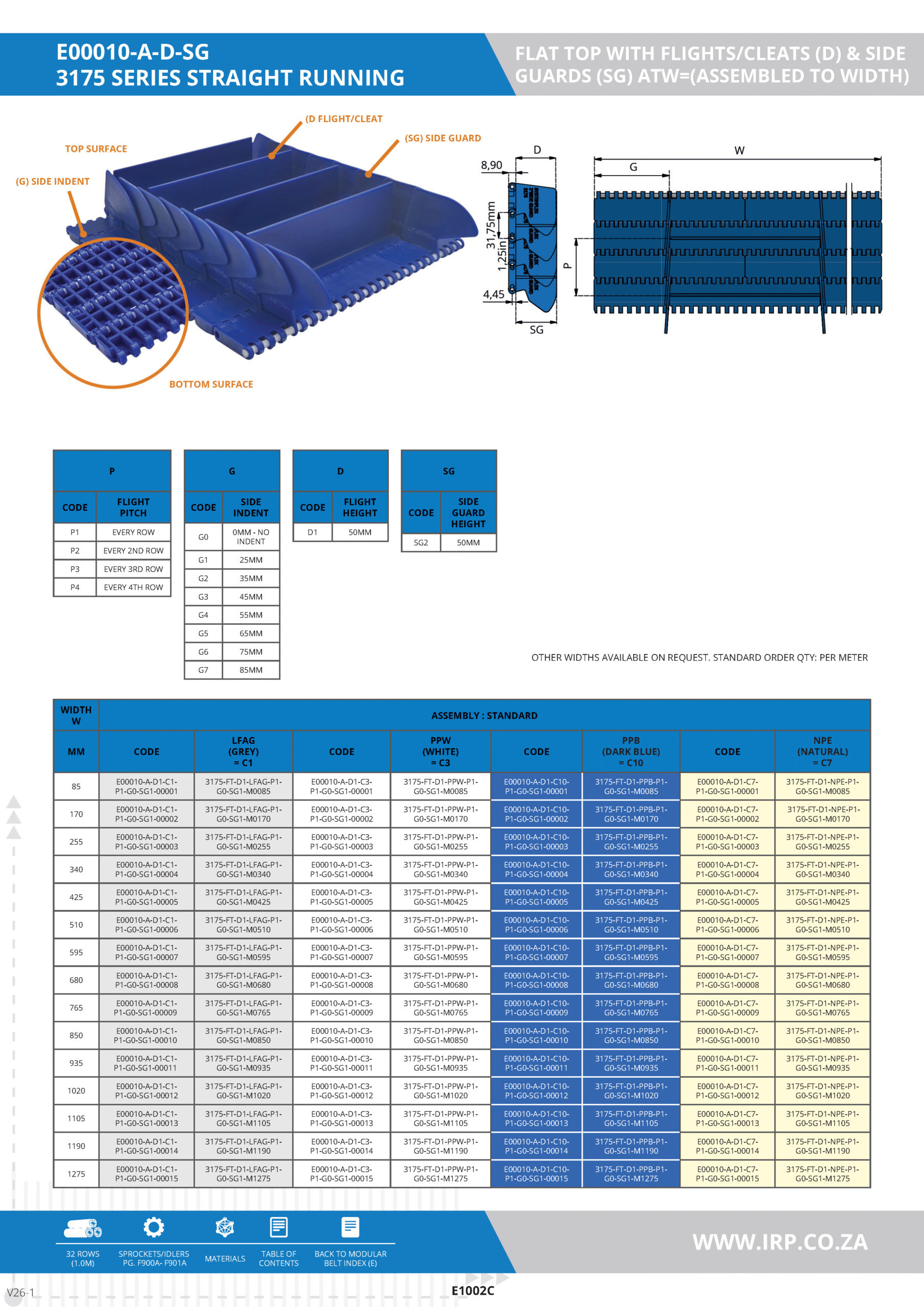

3175 SERIES-STRAIGHT RUNNING-FLAT TOP WITH FLIGHTS/CLEATS (D) AND SIDE GUARDS (SG)
Catalogue code: E00010-A-D-SG
3175 Series
Straight Running
Flat Top WITH FLIGHTS/CLEATS (D) & SIDE GUARDS (SG) - ASSEMBLED TO WIDTH (ATW)
This 3175 Series is a straight-running modular belt featuring a flat top surface with integrated vertical Flights/Cleats (D) and Side Guards (SG). This design prevents rollback, retains product spacing, and minimizes spillage—making it ideal for incline or decline conveying. With configurable flight pitch, cleat height, and side indent sizes, this belt is suitable for a range of industrial and hygienic applications. Made from polypropylene (PPW/PPB) or polyethylene (NPE), it provides excellent chemical resistance or cold performance depending on the chosen material.
Colour/s
Available in White (PPW), Blue (PPB), and Natural (NPE)
Material/s
Polypropylene (PPW, PPB), Polyethylene (NPE)
Standard Order Quantity
Standard Order Quantity: Assembled to Width (ATW) – Custom widths available per project requirement
PPW / PPB: High-performance polypropylene for industrial and chemical environments NPE: Cold-resistant polyethylene suitable for freezing and sub-zero applications
Vertical Flights/Cleats: Keeps product in place during transport on inclines/declines
Side Guards: Prevents product spillage and maintains load control
Flat Top Design: Provides a stable surface for bulk or packed items
High Working Load Capacity: Up to 15,000 N/m (PP) or 7,500 N/m (NPE)
Customisable Configurations: Pitch, cleat height, and indent sizes can be selected per need
Temperature Resilience: Operating from -70°C to +120°C depending on material
Solution Features & Benefits
Maintains control of product flow on inclines
Compatible with wet, chemical-heavy environments
Offers a contained conveying solution
Industries & Ideal Applications
Fruit & Vegetable Processing: Moves produce uphill with minimal loss or bruising
Frozen Foods: NPE version provides safe incline transport of frozen packs
Flat Top Design: Provides a stable surface for bulk or packed items
High Working Load Capacity: Up to 15,000 N/m (PP) or 7,500 N/m (NPE)
Plastic Components Manufacturing: Moves small parts up or down without scattering
