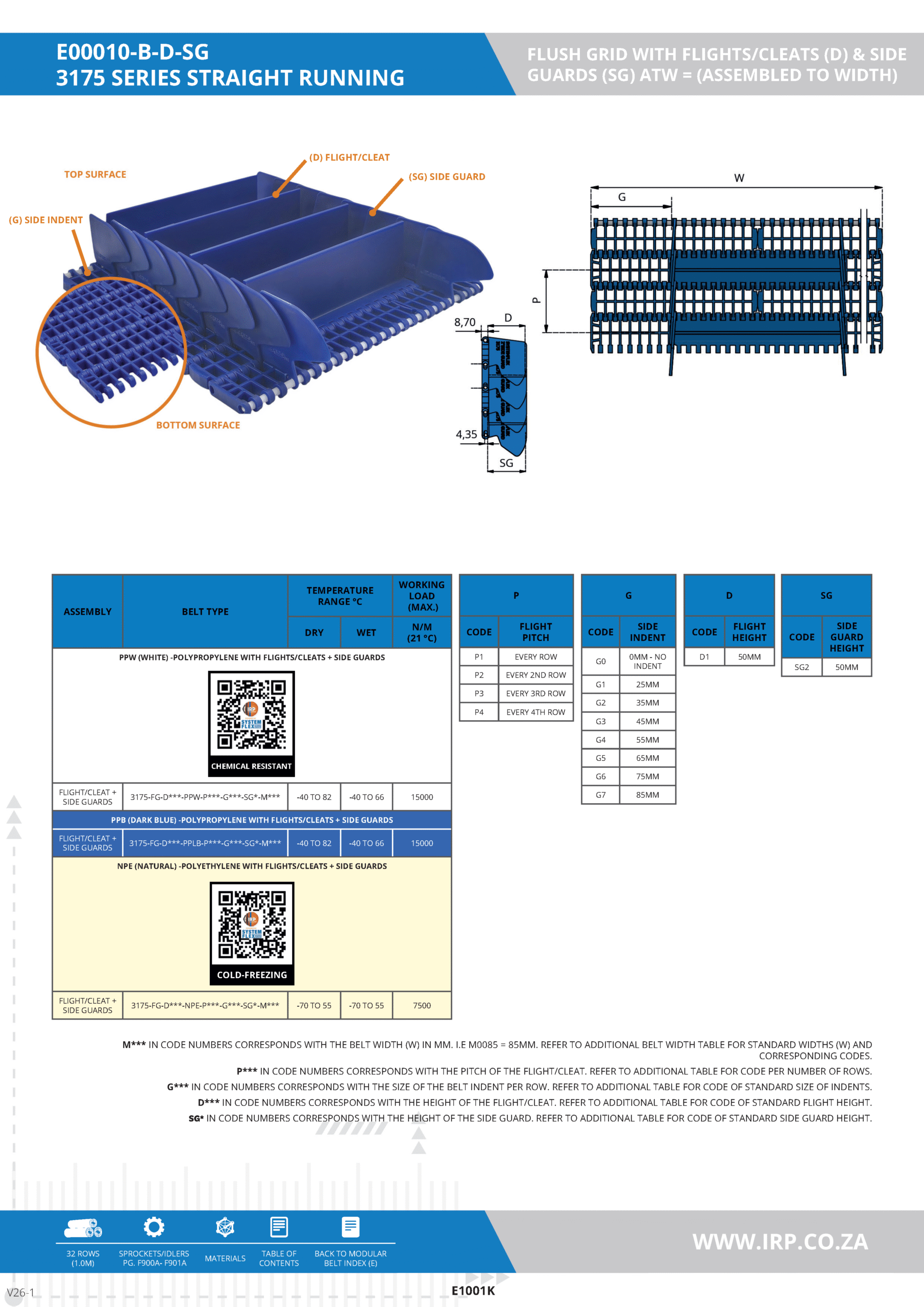

3175 SERIES STRAIGHT RUNNING-FLUSH GRID WITH FLIGHTS/CLEATS (D) & SIDE GUARDS (SG)
Catalogue code: E00010-B-D-SG
3175 Series
Straight Running
Flush Grid WITH FLIGHT/CLEATS (D) & SIDE GUARDS (SG) - ASSEMBLED TO WIDTH (ATW)
This 3175 Series is a Flush Grid, straight-running modular belt enhanced with vertical flights/cleats and side guards. Designed to contain and control product movement, it is ideal for incline or decline conveying. The Flush Grid structure allows drainage and airflow, while the integrated cleats prevent rollback and the side guards maintain load integrity. Built from high-performance polypropylene or polyethylene, this belt excels in hygiene-sensitive and high-load environments, with customizable configurations including cleat pitch, indent size, and guard height.
Colour/s
Available in White (PPW), Blue (PPB), and Natural (NPE)
Material/s
Polypropylene (PPW, PPB), Polyethylene (NPE)
Standard Order Quantity
Standard Order Quantity: Assembled to Width (ATW) – Custom widths available
PPW / PPB: Chemical-resistant polypropylene suitable for industrial and hygienic applications
NPE: Polyethylene engineered for cold environments and freezing conditions
Integrated Flights/Cleats: Prevent rollback and separate product loads
Side Guards: Keep products contained during transport, especially on inclines
Flush Grid Design: Promotes drainage and airflow
Customizable Flight & Guard Specs: Pitch, height, and side indent options
High Load Capacity: Up to 15000 N/m for PP; 7500 N/m for NPE
Built for Inclines: Suitable for upward/downward movement without product loss
Solution Features & Benefits
Prevents slipping and shifting during elevation
Enhances containment and product stability
Operates in both dry and wet conditions
Industries & Ideal Applications
Meat & Poultry Processing: Transport of cuts or trays uphill with product containment
Frozen Food Manufacturing: NPE version supports cold conditions and prevents sliding
Flush Grid Design: Promotes drainage and airflow
Customizable Flight & Guard Specs: Pitch, height, and side indent options
Plastic & Part Conveying: Moves parts securely through inclined assembly lines
