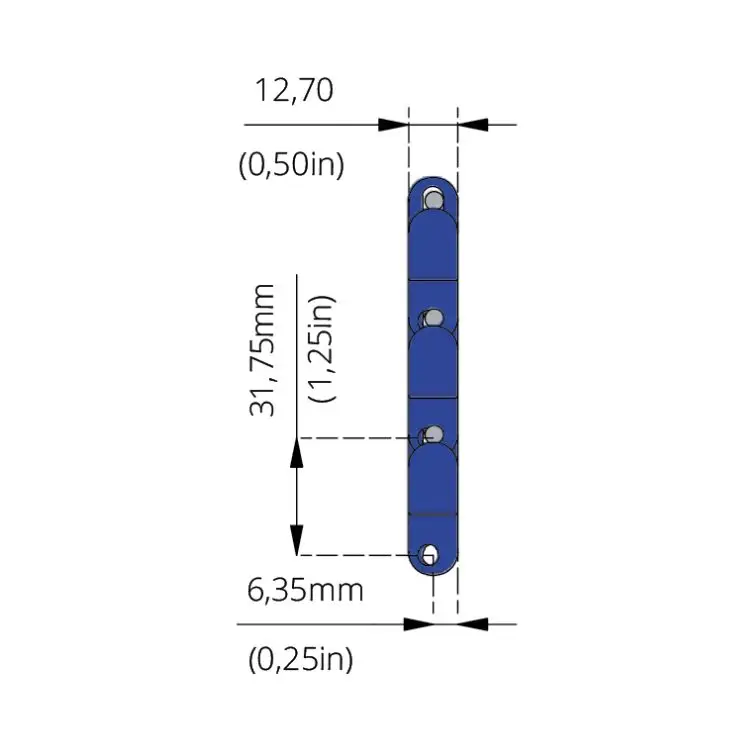

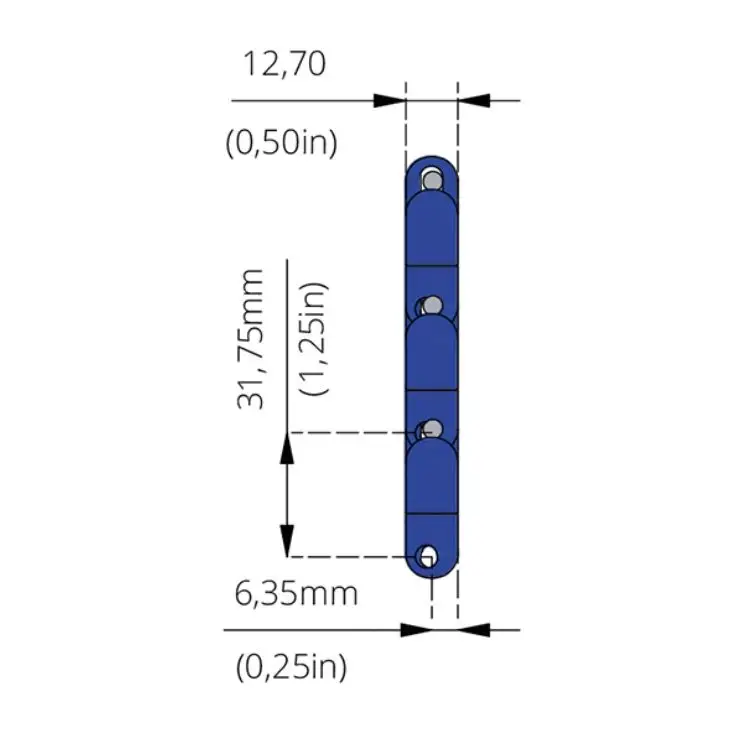

Catalogue code: E00011-Series 3175 (31.75mm PITCH)

E00011-B-3175-Side Flex Series-Flush Grid-ATW = (Assembled To Width)

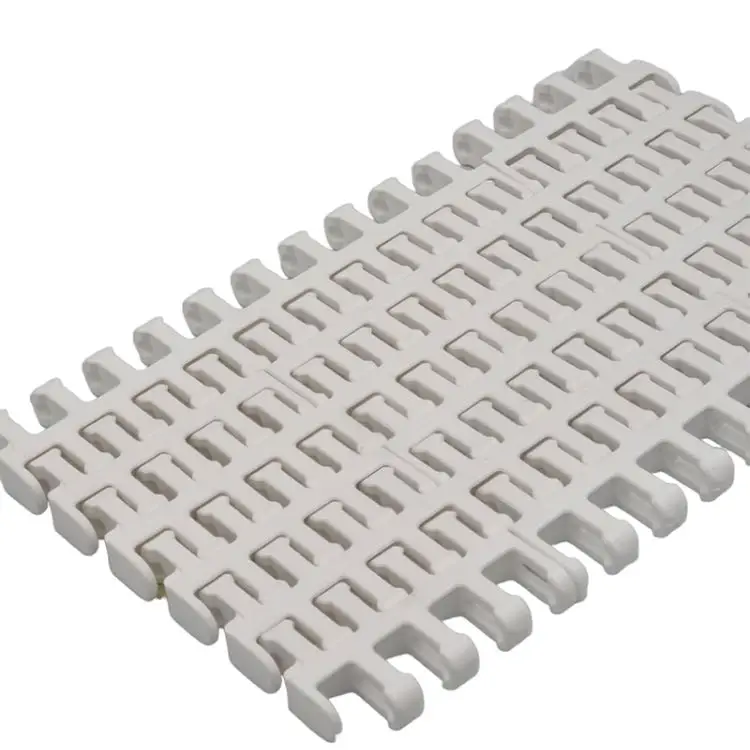

The 3175 Side Flex Series is a highly durable modular belt specifically engineered for side-flexing applications. Constructed with low friction acetal and reinforced with PBT pins, this belt is designed to handle tight curves and complex layouts while maintaining smooth, consistent movement. With a flush grid assembly, the belt ensures optimal airflow and fluid drainage, making it suitable for both dry and wet environments. The offset eye design enhances pin retention without the need for additional clip arrangements, providing an easy-to-maintain solution that ensures long-lasting performance.

Colour/s

Dark Blue (LFADB – Low Friction Acetal with PBT Pins) White (LFAW – Low Friction Acetal with PBT Pins)

Material/s

Low Friction Acetal with PBT Pins

Standard Order Quantity

Standard Order Quantity: Per Meter

Product information:

Key Features & Benefits

Low Friction Acetal provides excellent wear resistance, low friction, and high dimensional stability, making it ideal for conveyor applications. The PBT pins add extra durability and temperature resistance, ensuring the belt can perform reliably in demanding environments.

Pin Retention by Offset Eye Design: Ensures secure pin positioning without the need for additional clips.
No Clip Arrangement Needed: Simplifies maintenance and reduces the risk of operational issues.
Flush Grid Design: Promotes efficient drainage and airflow, ideal for wet and dry conditions.
Low Friction Material: Reduces wear and energy consumption, extending the belt's lifespan.

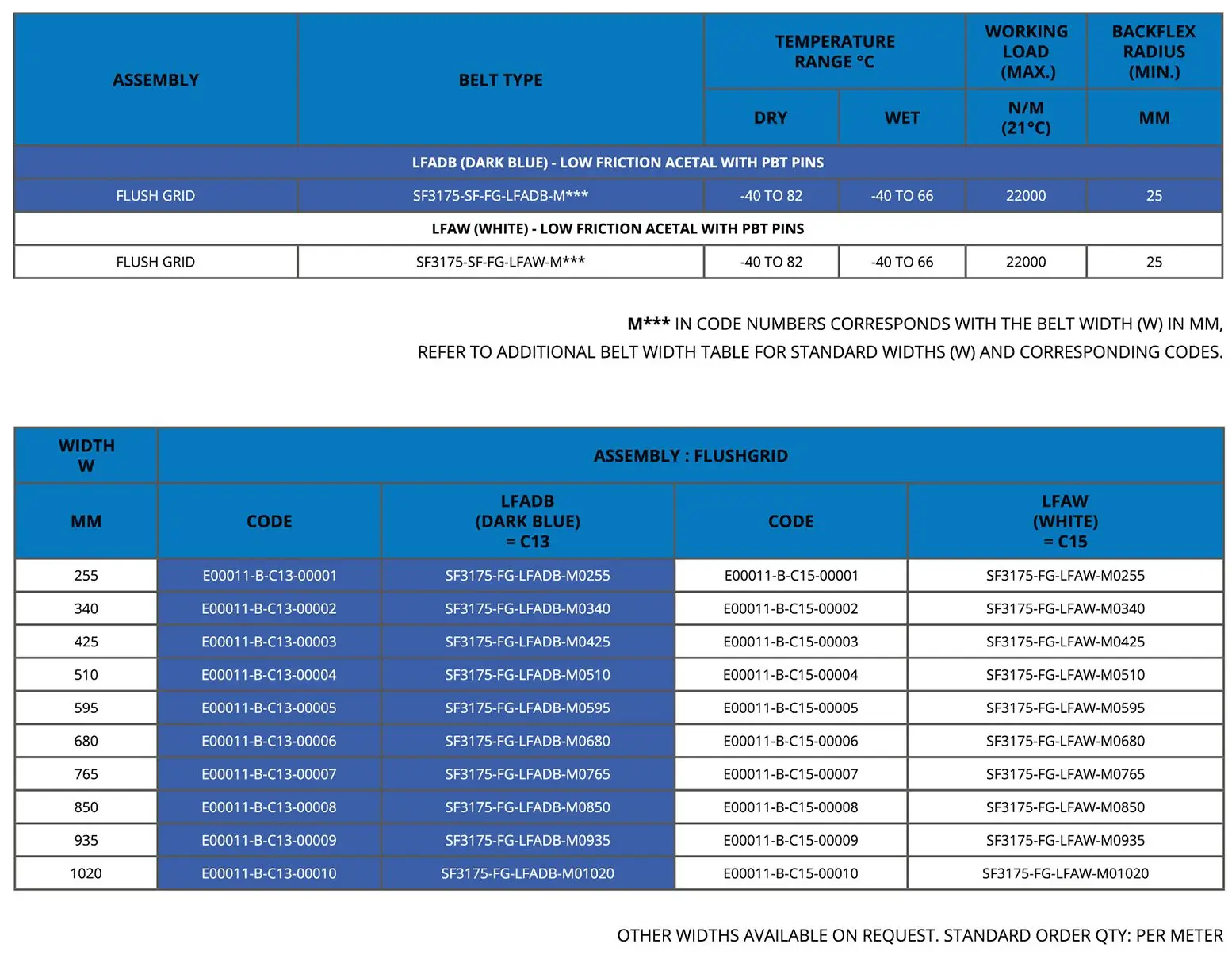

Temperature Resistant: Suitable for a wide range of operating temperatures (-40 to 82°C for dry conditions).
Versatile Applications: Compatible with a variety of industries requiring smooth and reliable side-flexing capabilities.

Solution Features & Benefits

Flush Grid Applications: Allows for better air circulation and drainage, making it suitable for applications where hygiene and cleanliness are crucial.

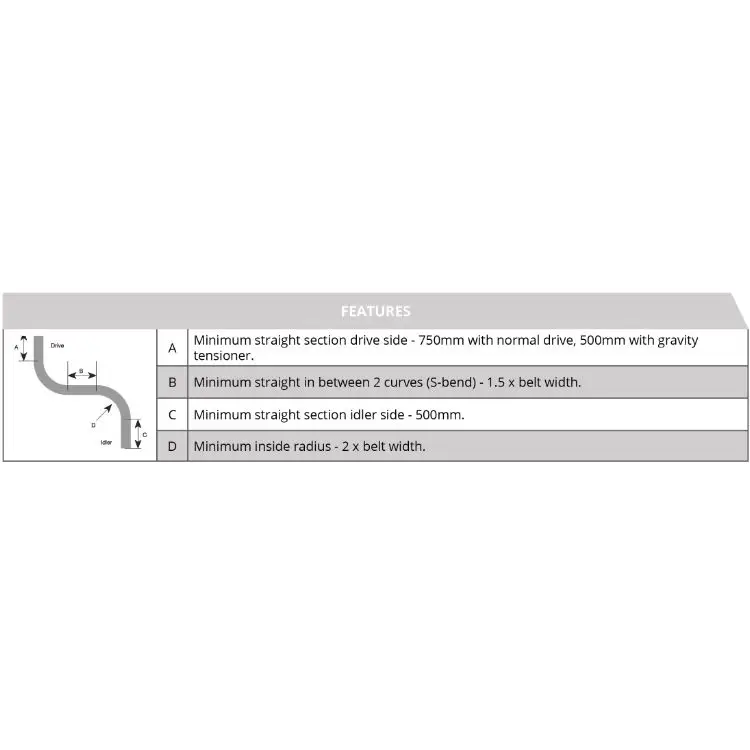

Side Flexing Applications: Offers the ability to navigate tight corners and complex routes without compromising the speed or integrity of the conveyor flow.

Industries & Ideal Applications

Food Processing: Ideal for transporting food products through curved conveyors in processing plants.
Packaging: Suitable for use in packaging lines where smooth, continuous movement through bends is required.
Flush Grid Design: Promotes efficient drainage and airflow, ideal for wet and dry conditions.
Low Friction Material: Reduces wear and energy consumption, extending the belt's lifespan.
Pharmaceuticals: Ensures the safe transport of pharmaceutical products through curved conveyor systems.

Coming soon…
