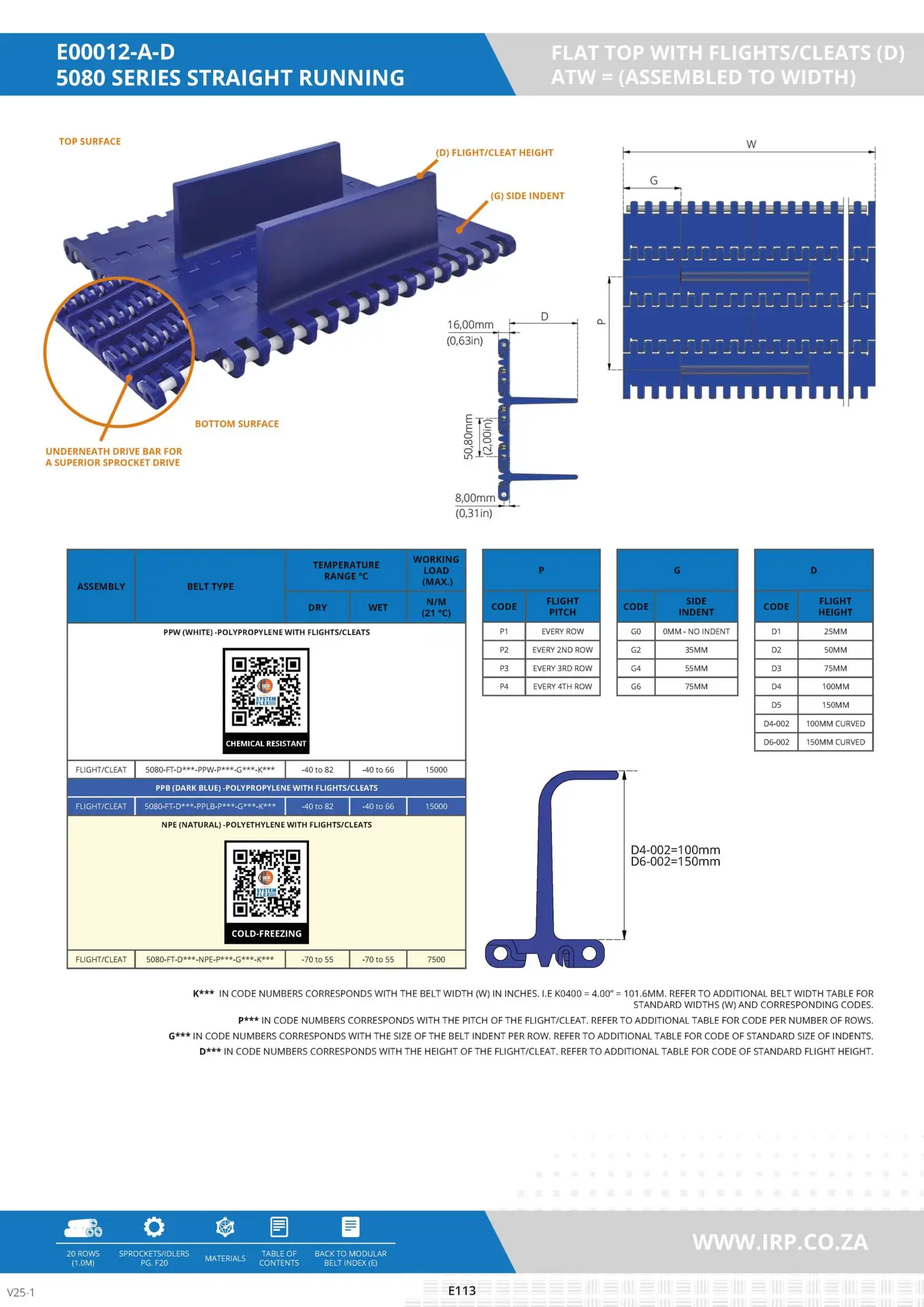

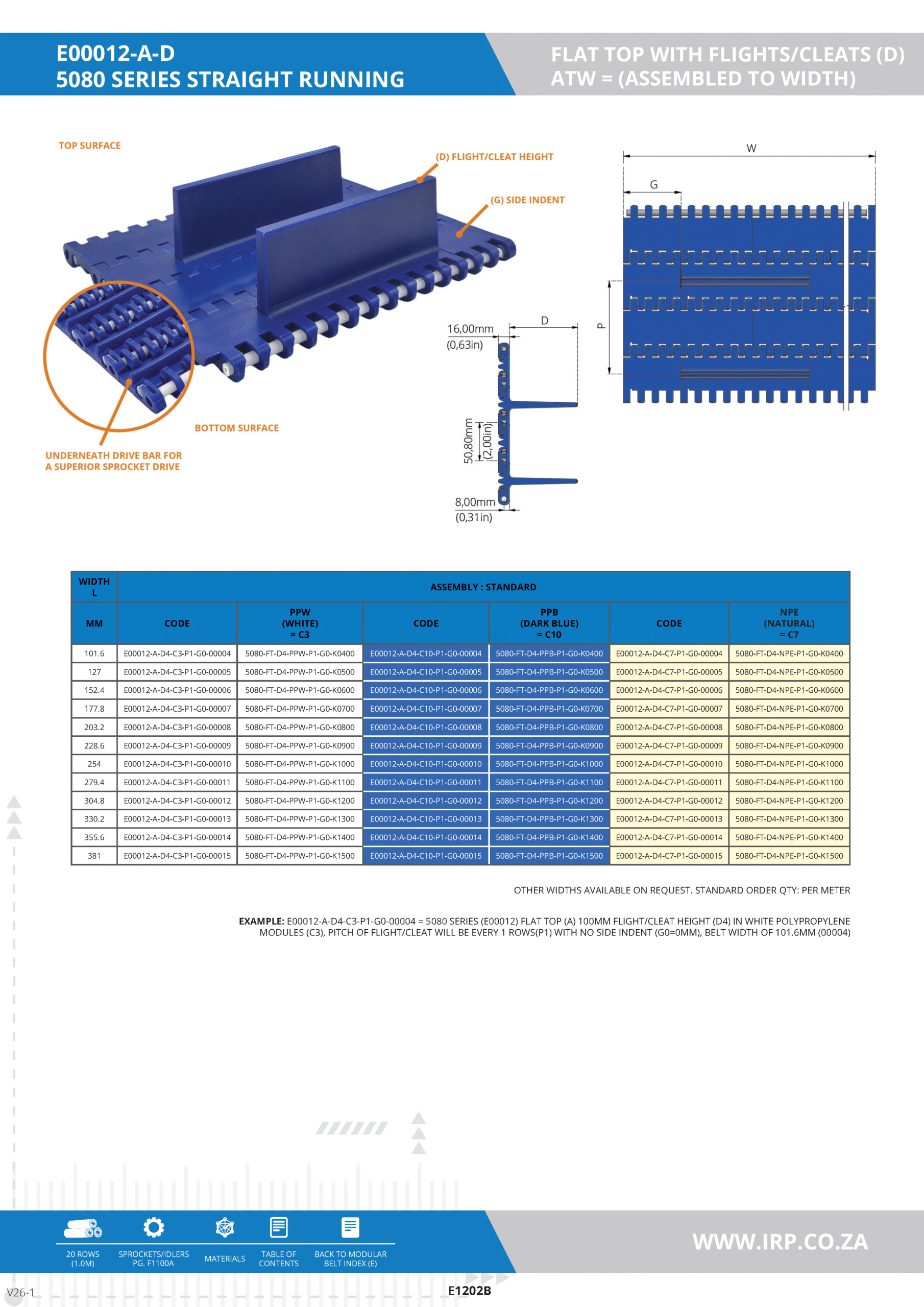

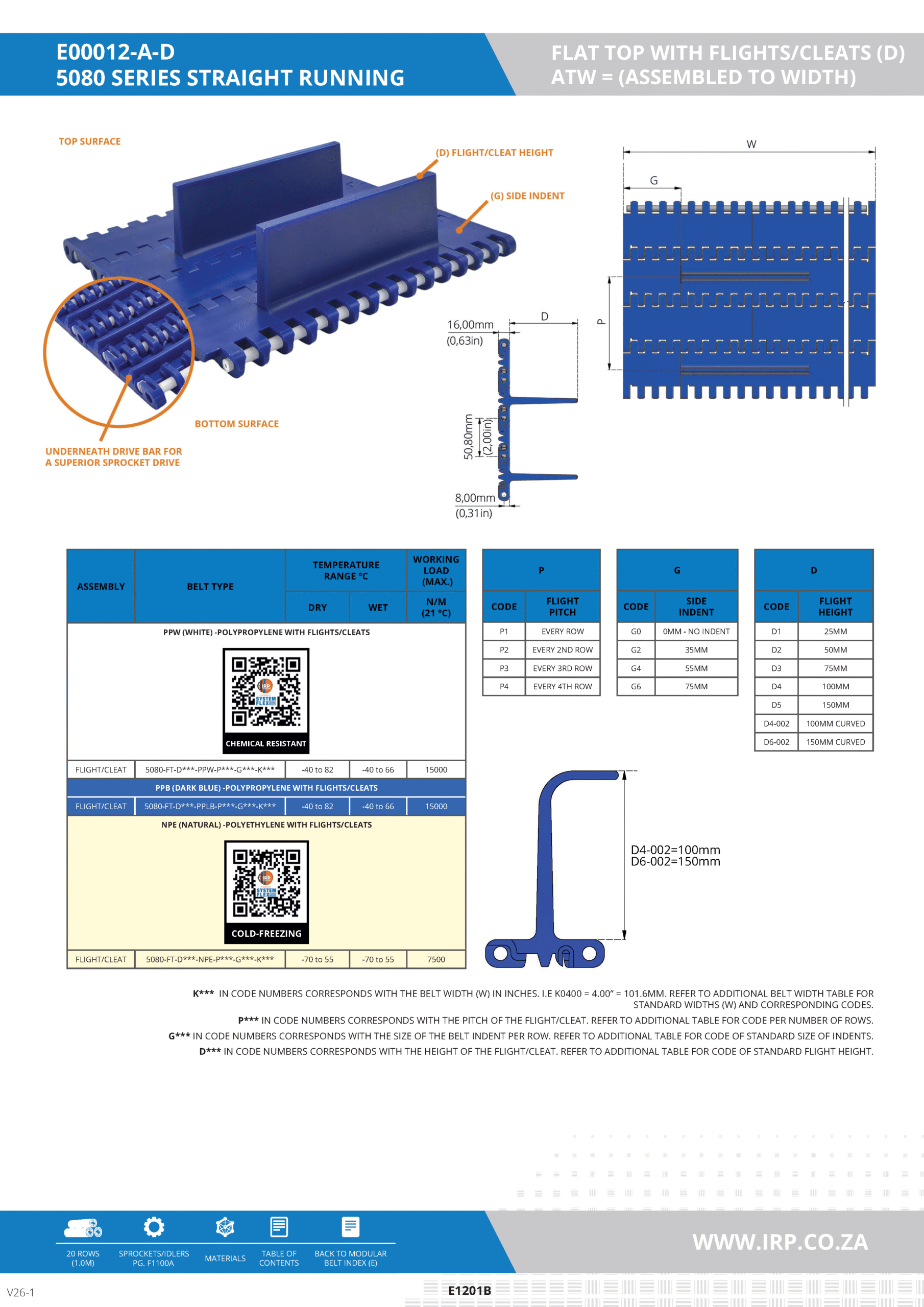

5080 SERIES STRAIGHT RUNNING – FLAT TOP (FT) WITH FLIGHTS/CLEATS (D)
Catalogue code: E00012-A-D
5080 Series
Straight Running
Flat Top (FT) with Flights/Cleats (D)
This 5080 Series is a straight-running modular belt featuring a flat top surface and vertical flights (cleats). Designed to assist with upward or downward product transport, the integrated cleats prevent rollback and help maintain product spacing. With a customizable pitch, cleat height, and side indent, this 5080 modular belt suits a wide variety of conveying needs. Made from high-performance polypropylene or cold-resistant polyethylene, this belt meets the demands of food processing, manufacturing, and industrial applications.
Colour/s
Available in White (PPW), Blue (PPB), and Natural (NPE)
PPW/PPB: High-quality polypropylene for use in chemically intense and high-load applications
NPE: Cold-resistant polyethylene for freezing environments and low-temp transport
Vertical Flight Design: Prevents product rollback on incline conveyors
High Working Load: Supports up to 15000 N/m depending on material
Superior Drive Bar System: Ensures optimal sprocket engagement
Temperature Resilience: Ranges from -70°C to +120°C based on material selection
Customisable Pitches & Heights: Configure cleat spacing and height to match your process
Available in Multiple Materials: Tailored for chemical, wet, dry, and cold applications
Solution Features & Benefits
Allows steep transport angles without product slippage
Adaptable to extreme cold with NPE material
Reduces product damage during elevation
Industries & Ideal Applications
Meat & Poultry Plants: For controlled transport of meat cuts on sloped belts
Frozen Foods: NPE version is perfect for handling frozen products with cleat separation
Superior Drive Bar System: Ensures optimal sprocket engagement
Temperature Resilience: Ranges from -70°C to +120°C based on material selection
Bakery Production: Handles dough trays or pans up inclines during staging
