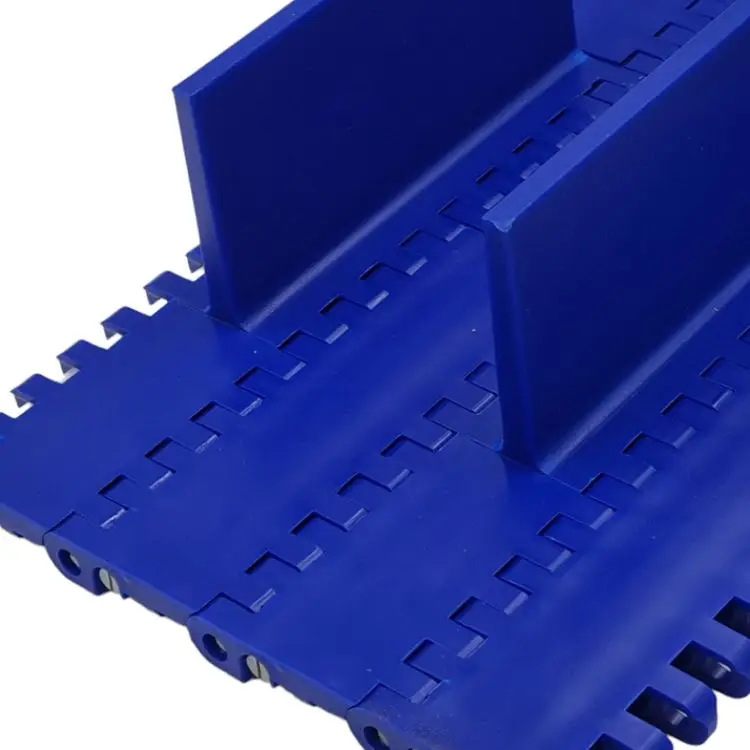

E00012-A-D-5080 Straight Running Series-Flat Top With Flights/Cleats (D)-ATW = (Assembled To Width)

The 5080 Straight Running Series with Flights/Cleats (D) is engineered to meet the demanding needs of industries requiring precise product movement and stability during straight-line conveyance. This belt is constructed from high-quality Polypropylene (PP) or Polyethylene (PE), and features PBT pins for added durability and strength. The integrated flights/cleats provide additional product control, making it suitable for applications where products need to be transported on an incline or maintained in a specific position. The belt is available in multiple heights, pitches, and indents, providing flexibility to meet a wide range of operational requirements. With a high working load capacity and a broad temperature range, the 5080 Series with Flights/Cleats is designed to deliver reliable performance in both dry and wet environments.

Material/s

Polypropylene (PP) or Polyethylene (PE) with PBT Pins

Solution/s

Flat Top, Metal-free Polymer – LFADB, Flights/Cleats, Chemical-Resistant – PPB-PPW, Cold/Freezing Temperatures – NPE

Colour/s

White (PPW – Polypropylene with PBT Pins) Dark Blue (PPB – Polypropylene with PBT Pins) Natural (NPE – Polyethylene with Polyethylene Pins)

Product information:

Key Features & Benefits

Polypropylene provides excellent chemical resistance, high impact strength, and a wide operating temperature range, making it ideal for heavy-duty conveyor applications. Polyethylene offers good impact resistance and low-temperature performance, making it suitable for cold environments. The PBT pins add strength and durability, ensuring long-lasting performance.

Flight/Cleat Design: Ensures secure product movement, especially on inclines and in applications requiring precise product positioning.
High Load Capacity: Supports heavy loads with a maximum working load of 15,000 N/m (PP) or 7,500 N/m (PE).
Versatile Material Options: Available in Polypropylene and Polyethylene to suit different applications and environments.
Temperature Range: Operates effectively from -70°C to 82°C, accommodating a variety of environmental conditions.
Durable Construction: Features PBT pins for enhanced durability and stability.

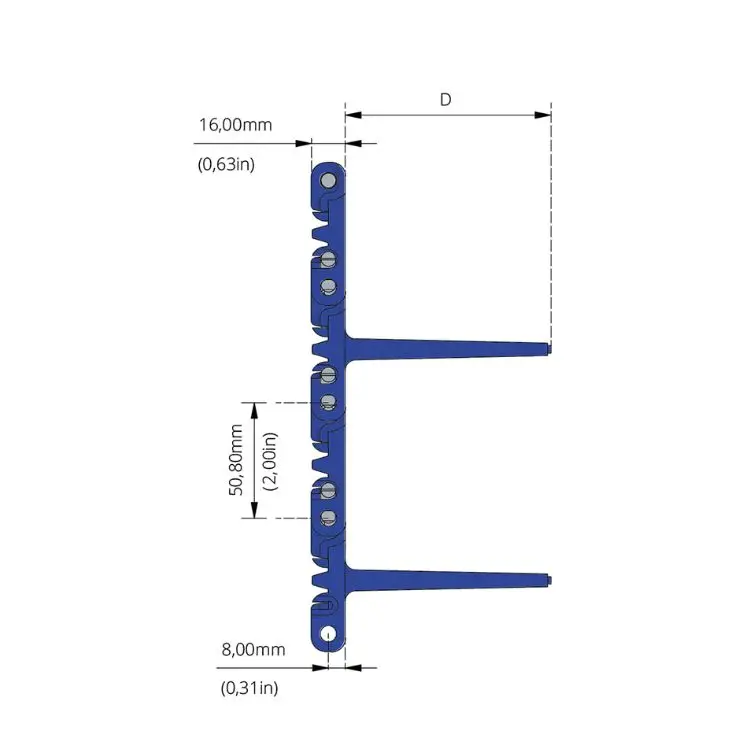

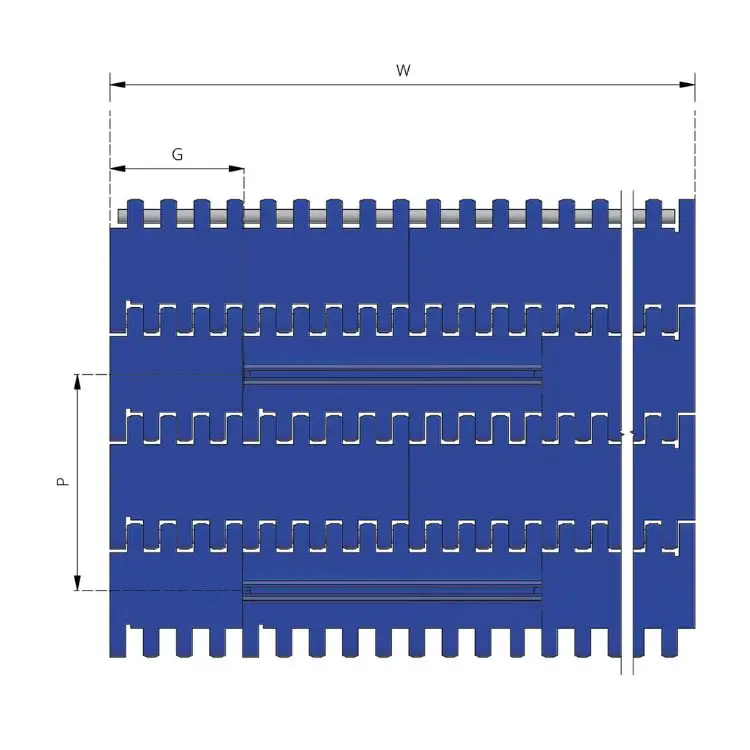

Customizable Configuration: Available in multiple heights, pitches, and indents to meet specific application needs.

Solution Features & Benefits

Flat Top Applications: Offers a smooth, stable surface for the transportation of various products, minimizing damage during transit.
Metal-free Polymer Applications: Ideal for industries requiring non-metallic components to avoid contamination, corrosion, or interference with sensitive machinery and products.
Flights/Cleats Applications: Enhances the conveyance of bulk materials on inclines by preventing backsliding and improving feed rates.

Standard Order Quantity: Per Meter

Industries & Ideal Applications

Food Processing: Ideal for transporting food products on inclines, ensuring stability and precise positioning.
Packaging: Suitable for packaging lines where products need to be securely positioned during conveyance.
Versatile Material Options: Available in Polypropylene and Polyethylene to suit different applications and environments.
Temperature Range: Operates effectively from -70°C to 82°C, accommodating a variety of environmental conditions.
Beverage Industry: Effective in bottling and canning lines where consistent product movement and stability are crucial.
