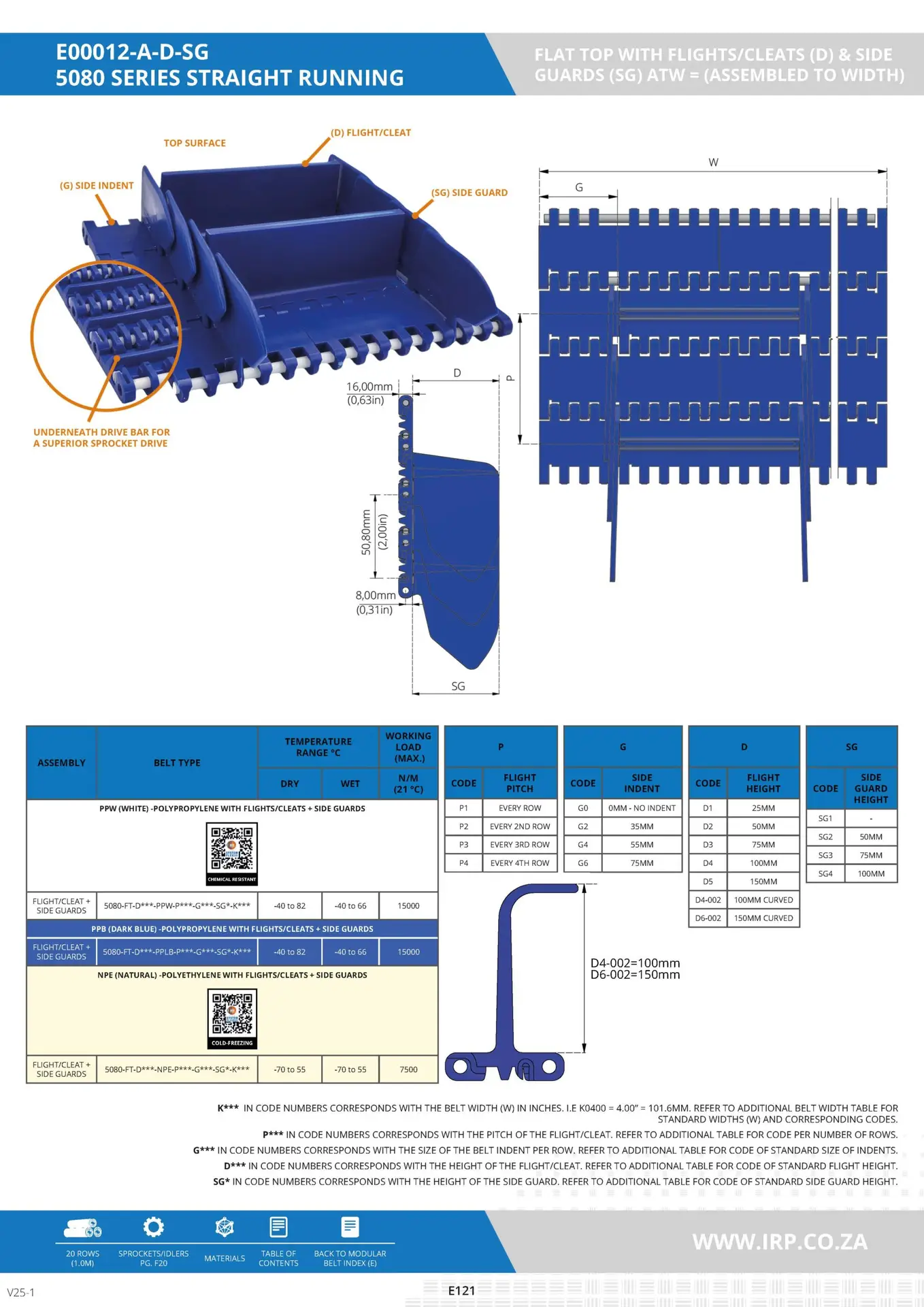

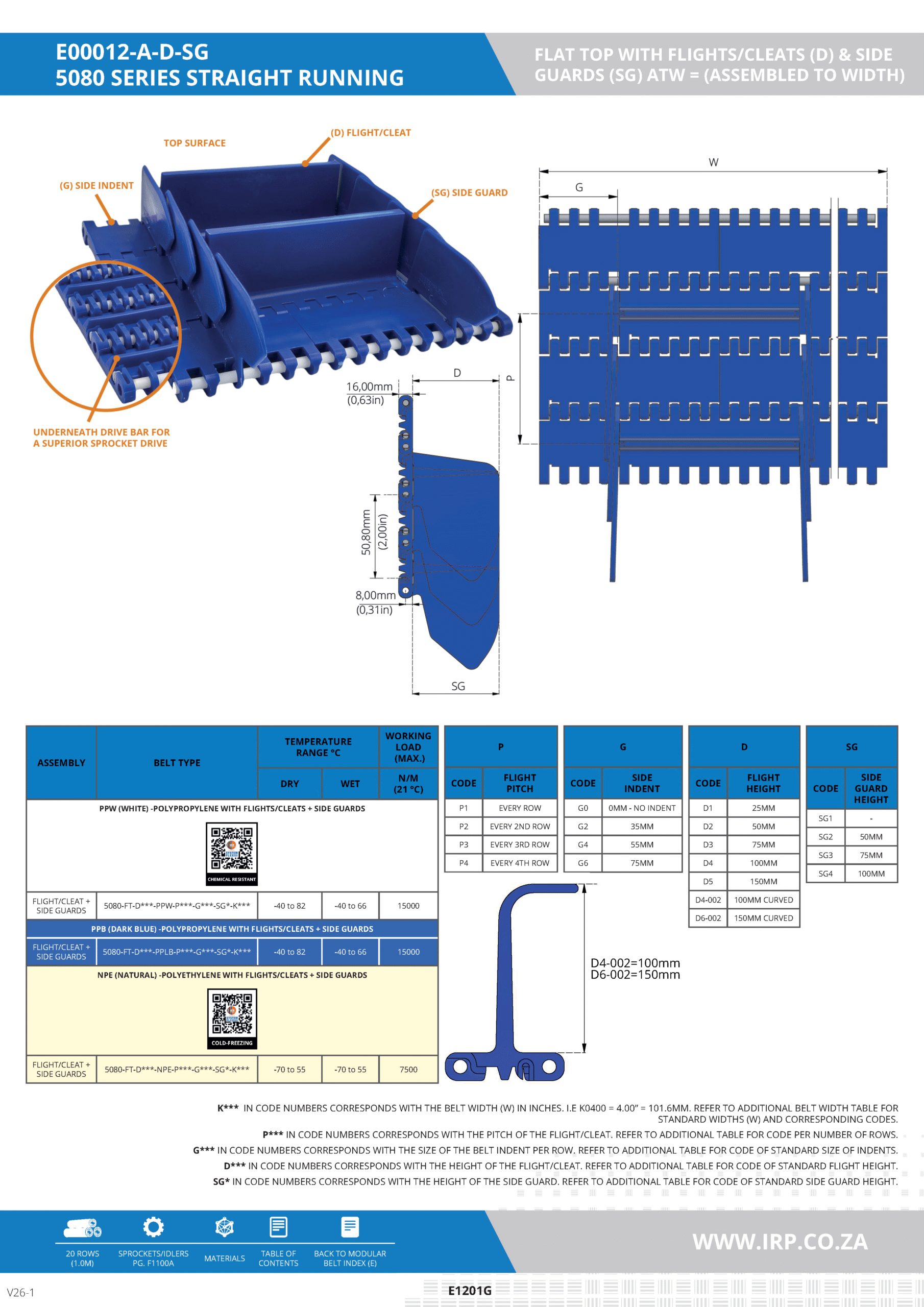

5080 Straight Running Series-Flat Top With Flights/Cleats (D) & Side Guards (SG) Assembled To Width (ATW)
Catalogue code: E00012-A-D-SG
5080 Series
Straight Running
FLAT TOP with flights/cleats (D) & Side Guards (SG)
This 5080 Series modular conveyor belt system, featuring a straight running, flat top design with integrated flights (cleats) and side guards. This belt is constructed from durable polymer materials and is available in three variants: white polypropylene (PPW), blue polypropylene (PPB), and natural polyethylene (NPE), making it suitable for a wide range of applications including cold environments. The assembled configuration enhances load stability, minimizes spillage, and enables efficient transport of bulk or irregular-shaped products. It is compatible with superior sprocket drives and includes options for different flight heights and side guard configurations.
Colour/s
Available in White (PPW), Blue (PPB), and Natural (NPE)
Material/s
Polypropylene (PPW, PPB), Polyethylene (NPE)
Standard Order Quantity
Standard Order Quantity: Available Assembled to Width (ATW) – Custom width per application
PPW/PPB: High-strength polypropylene for robust performance in wet and dry environments
NPE: Low-temperature polyethylene ideal for freezing conditions
Integrated Flights and Side Guards: Prevent product rollback and reduce spillage.
Heavy-Duty Construction: Designed for high-load industrial applications.
Superior Drive Engagement: Underneath drive bar offers improved sprocket engagement.
Customizable Options: Multiple flight pitches, heights, and side indent choices.
Temperature Resistant: Suitable for -40°C to +120°C depending on material type.
Easy Maintenance: Modular design allows for easy replacement and cleaning.
Solution Features & Benefits
Reduced wear and tear in dry environments
Enhanced energy efficiency due to low friction
Long service life with minimal lubrication
Industries & Ideal Applications
Food & Beverage Processing: Hygienic transport of packaged or bulk items with minimal contamination.
Agriculture: Efficient handling of produce with flights preventing slippage.
Superior Drive Engagement: Underneath drive bar offers improved sprocket engagement.
Customizable Options: Multiple flight pitches, heights, and side indent choices.
Recycling & Waste Management: Sturdy design suited for moving heavy or irregular materials.
