E00012-B-5080 Straight Running Series-Flush Grid-ATW = (Assembled To Width)

E00012-B-5080 STRAIGHT RUNNING SERIES-FLUSH GRID-ATW = (ASSEMBLED TO WIDTH)

E00012-B-5080 STRAIGHT RUNNING SERIES-FLUSH GRID-ATW = (ASSEMBLED TO WIDTH) (2)

E00012-B-5080 STRAIGHT RUNNING SERIES-FLUSH GRID-ATW = (ASSEMBLED TO WIDTH) (4)

Product Type: E0000 Modular Belts

E00012-B-5080 Straight Running Series-Flush Grid-ATW = (Assembled To Width)

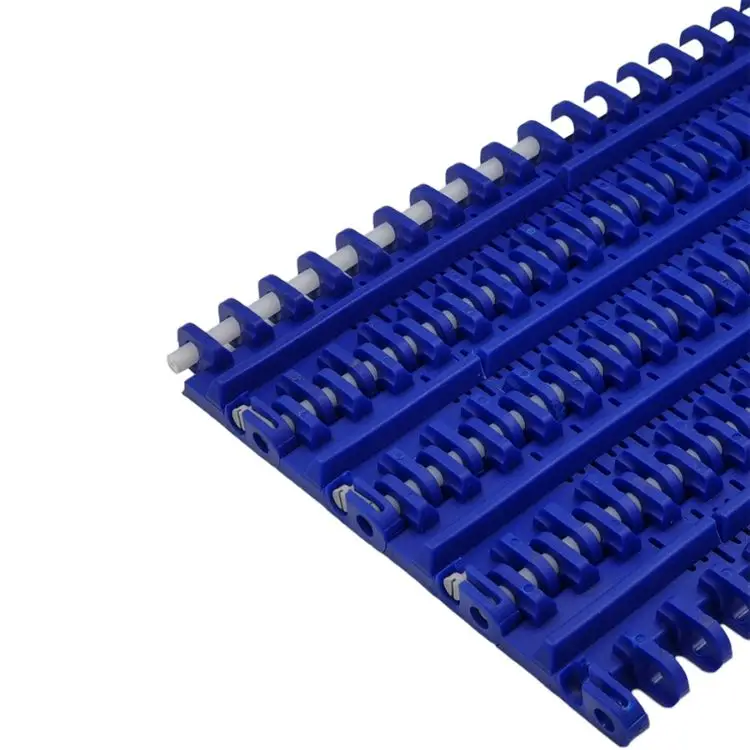

The 5080 Straight Running Series (Flush Grid) is a durable and versatile conveyor belt solution, engineered for efficient straight-line conveying with a flush grid design that allows for excellent airflow and fluid drainage. Constructed from high-quality materials such as Polypropylene (PP) and Polyethylene (PE), this belt is built to withstand challenging industrial environments. The belt is equipped with PBT pins for added strength and durability, ensuring reliable performance across a wide range of temperatures. With a high working load capacity and multiple width options, the 5080 Series (Flush Grid) is ideal for applications requiring robust and consistent conveyance, making it a versatile choice for various industries.

Material/s

Polypropylene (PP) or Polyethylene (PE) with PBT Pins

Solution/s

Flat Top, Metal-free Polymer – LFADB, Flights/Cleats, Side Guards, Chemical-Resistant – PPB-PPW, Cold/Freezing Temperatures – NPE

Colour/s

White (PPW – Polypropylene with PBT Pins) Dark Blue (PPB – Polypropylene with PBT Pins) Natural (NPE – Polyethylene with Polyethylene Pins)

Product information:

Key Features & Benefits

Polypropylene is known for its excellent chemical resistance, high impact strength, and wide operating temperature range, making it suitable for heavy-duty conveyor applications. Polyethylene offers good impact resistance and performs well at low temperatures, making it ideal for cold environments.

Flush Grid Design: Provides optimal airflow and fluid drainage, suitable for wet and dry applications.
High Load Capacity: Supports heavy loads with a maximum working load of 15,000 N/m (PP) or 7,000 N/m (PE).
Versatile Material Options: Available in Polypropylene and Polyethylene to suit different applications.
Wide Temperature Range: Operates effectively from -70°C to 104°C, accommodating various environmental conditions.
Durable Construction: PBT pins enhance the belt's durability and stability.
Multiple Widths Available: Offers flexibility to fit different conveyor system requirements.

Solution Features & Benefits

Flat Top Applications: Offers a smooth, stable surface for the transportation of various products, minimizing damage during transit.
Metal-free Polymer Applications: Ideal for industries requiring non-metallic components to avoid contamination, corrosion, or interference with sensitive machinery and products.
Flights/Cleats Applications: Enhances the conveyance of bulk materials on inclines by preventing backsliding and improving feed rates.

Standard Order Quantity: Per Meter

Industries & Ideal Applications

Food Processing: Ideal for conveying food products in environments where optimal airflow and drainage are essential.
Packaging: Suitable for packaging lines where consistent straight-line conveyance is required.
Versatile Material Options: Available in Polypropylene and Polyethylene to suit different applications.
Wide Temperature Range: Operates effectively from -70°C to 104°C, accommodating various environmental conditions.
Beverage Industry: Effective in bottling and canning lines, ensuring smooth conveyance with optimal fluid drainage.
