Product Type: E0000 Modular Belts

E00012-B-D-5080 Straight Running Series-Flush Grid With Flights/Cleats (D)-ATW = (Assembled To Width)

The 5080 Straight Running Series (Flush Grid with Flights/Cleats) is engineered for industrial applications that require precise product movement and stability during straight-line conveyance. Constructed from high-quality Polypropylene (PP) or Polyethylene (PE), this belt is designed to handle demanding environments. The flush grid design ensures excellent airflow and drainage, making it suitable for wet and dry conditions. The integrated flights/cleats provide enhanced product control, making this belt ideal for conveying products on inclines or maintaining specific positioning. Available in multiple heights, pitches, and indents, the 5080 Series with Flush Grid and Flights/Cleats offers versatility and reliability for various industrial applications.

Material/s

Polypropylene (PP) or Polyethylene (PE) with PBT Pins

Solution/s

Flush Grid , Flights/Cleats, Metal-free Polymer – LFADB, Chemical-Resistant – PPB-PPW, Cold/Freezing Temperatures – NPE

Colour/s

White (PPW – Polypropylene with PBT Pins) Dark Blue (PPB – Polypropylene with PBT Pins) Natural (NPE – Polyethylene with Polyethylene Pins)

Product information:

Key Features & Benefits

Polypropylene provides high impact strength, chemical resistance, and a broad temperature range, making it suitable for demanding conveyor applications. Polyethylene offers good impact resistance and performs well in low-temperature environments. The PBT pins add strength and durability, ensuring long-term performance.

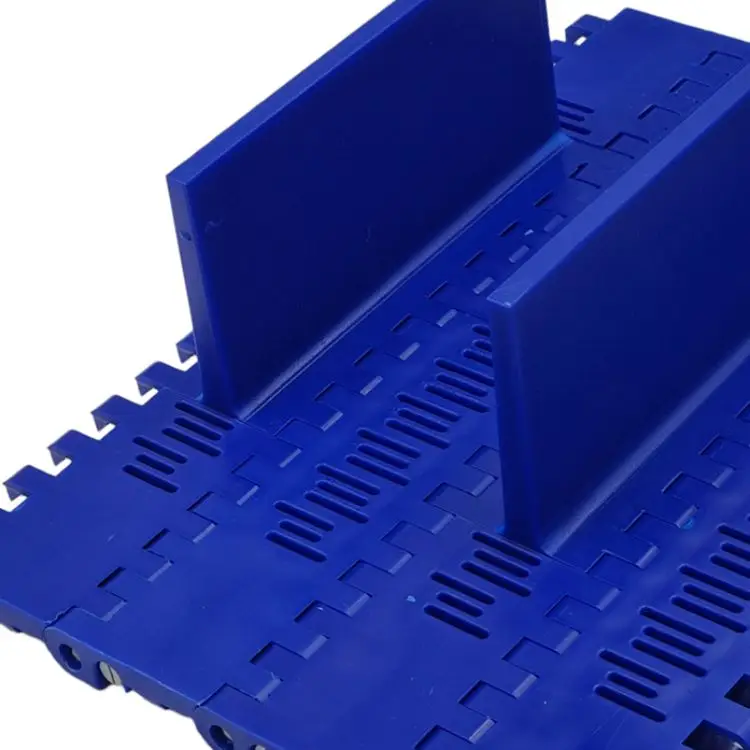

Flush Grid Design with Flights/Cleats: Ensures optimal airflow, drainage, and enhanced product stability, particularly on inclines.

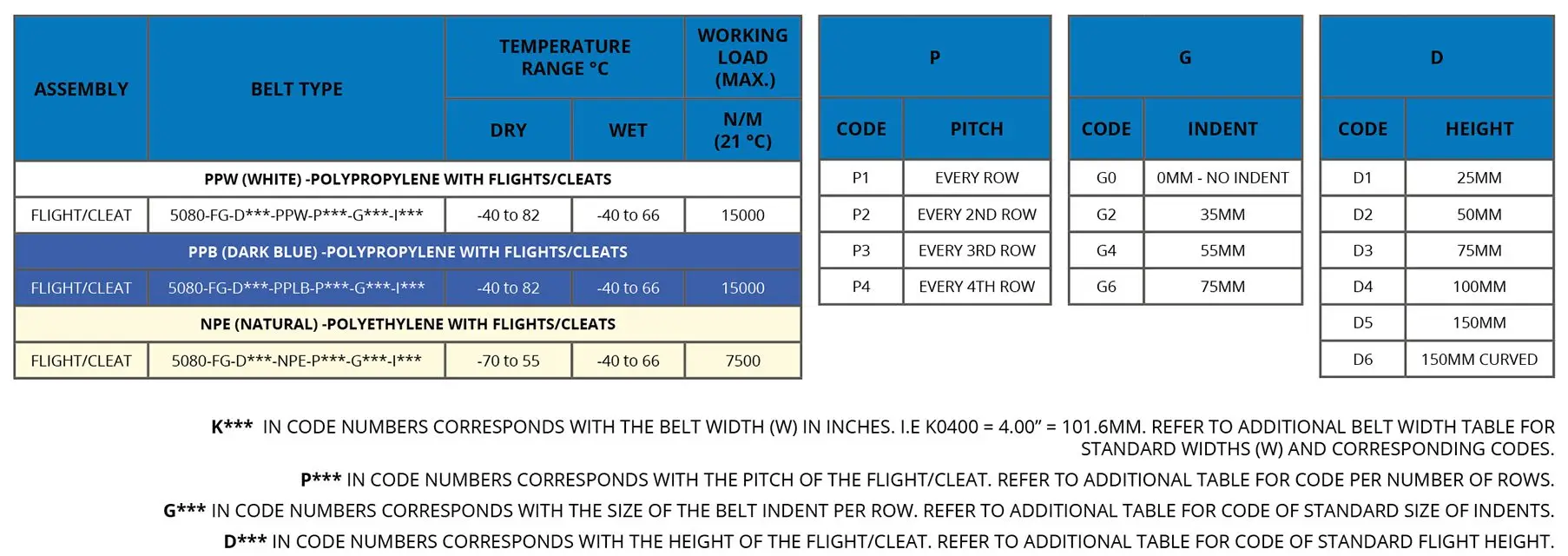

High Load Capacity: Supports heavy loads with a maximum working load of 15,000 N/m (PP) or 7,500 N/m (PE).
Versatile Material Options: Available in Polypropylene and Polyethylene to suit various application needs.
Wide Temperature Range: Operates effectively from -70°C to 82°C, accommodating a variety of environmental conditions.
Durable Construction: Features PBT pins for enhanced durability and stability.

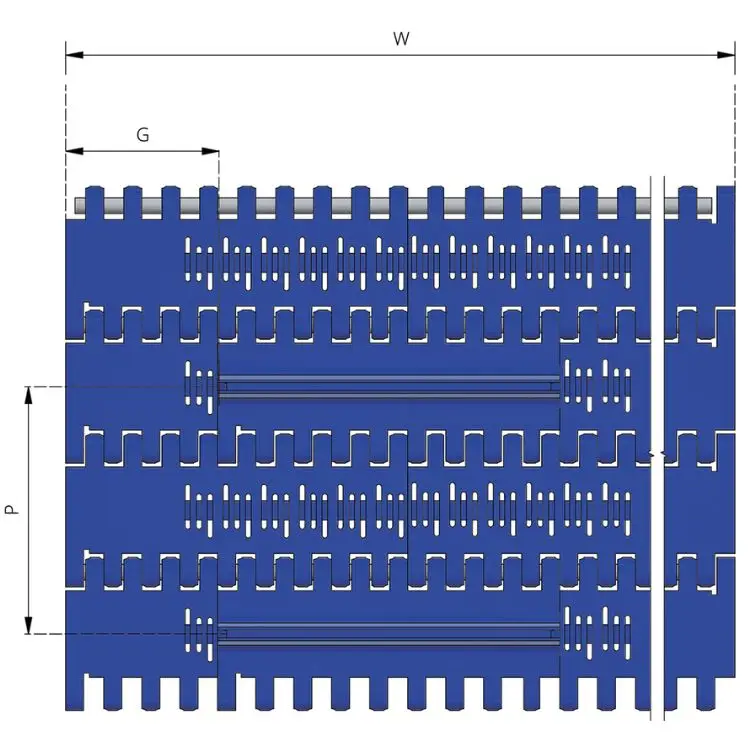

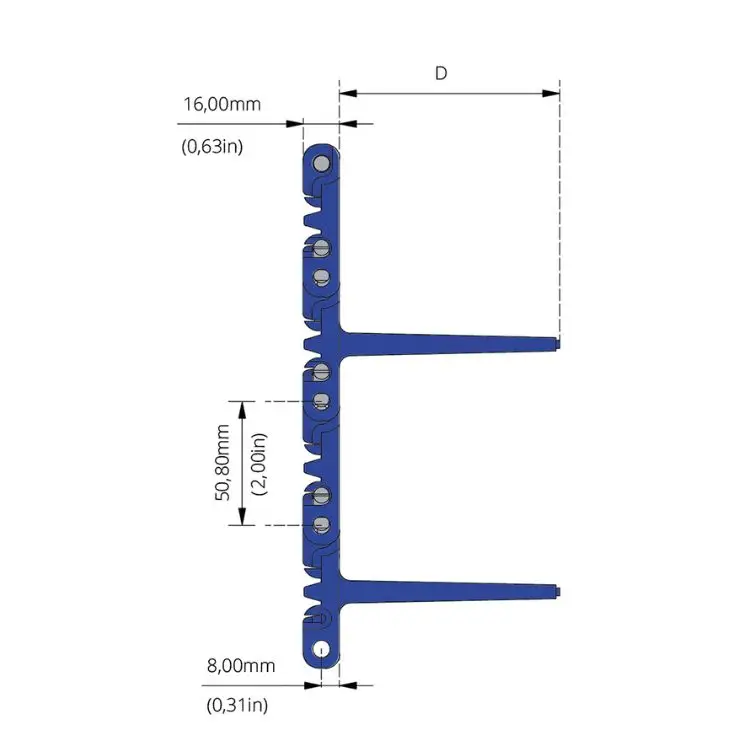

Customizable Configuration: Available in multiple heights, pitches, and indents to meet specific application requirements.

Solution Features & Benefits

Flush Grid Applications: Allows for better air circulation and drainage, making it suitable for applications where hygiene and cleanliness are crucial.
Flights/Cleats Applications: Enhances the conveyance of bulk materials on inclines by preventing backsliding and improving feed rates.
Metal-free Polymer Applications: Ideal for industries requiring non-metallic components to avoid contamination, corrosion, or interference with sensitive machinery and products.

Standard Order Quantity: Per Meter

Industries & Ideal Applications

Food Processing: Ideal for transporting food products on inclines, ensuring stability and precise positioning with optimal drainage.
Packaging: Suitable for packaging lines where products need to be securely positioned during conveyance, especially on inclines.
Versatile Material Options: Available in Polypropylene and Polyethylene to suit various application needs.
Wide Temperature Range: Operates effectively from -70°C to 82°C, accommodating a variety of environmental conditions.
Beverage Industry: Effective in bottling and canning lines, ensuring smooth conveyance with enhanced product stability and fluid drainage.
